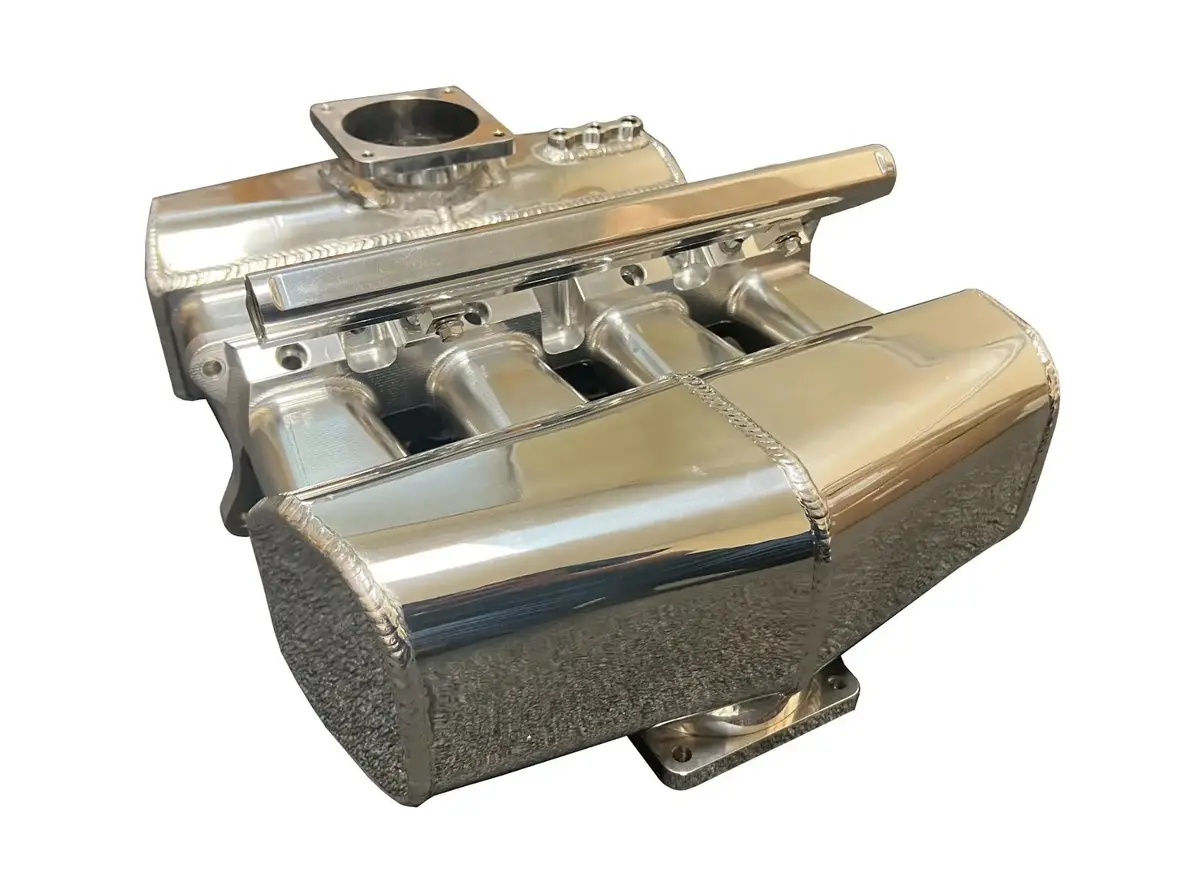

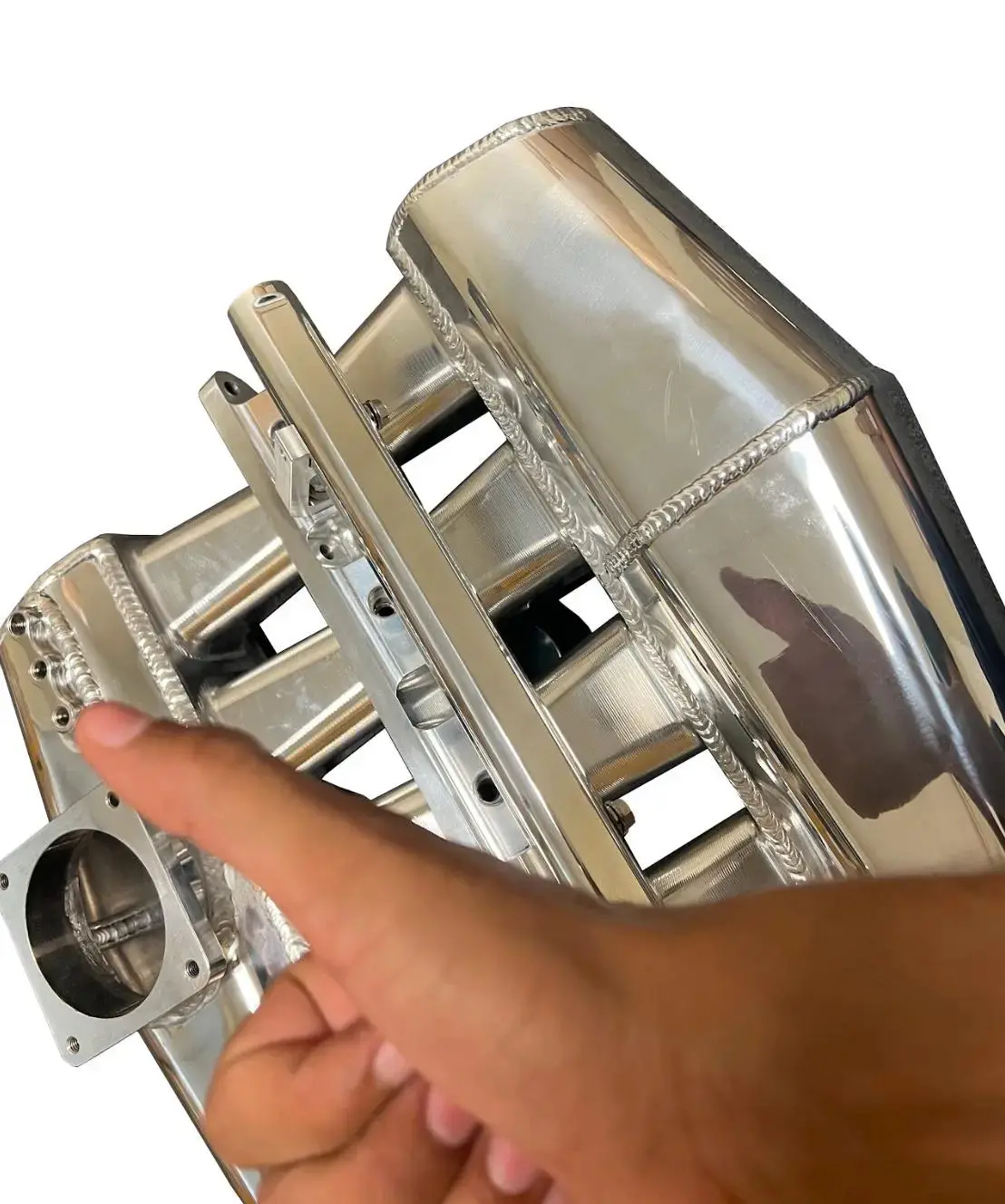

K-Series Center-Feed Intake Manifold with Brushed Aluminum Fuel Rail

Description

K Series K20 K24 Center Feed Intake Manifold with Brushed Fuel Rail

This center feed intake manifold is engineered for K Series K20 and K24 engines and features a brushed billet fuel rail setup compatible with aftermarket Bosch style injectors. The manifold is designed to accommodate throttle bodies in 80mm and 90mm sizes, as well as any throttle body with an 86-93 Ford 5.0L Mustang flange, supporting up to 105mm in size. The unit includes three 1/4″ NPT vacuum ports tapped into the underside for clearance and is intended as a direct replacement for the OEM intake manifold.

Key Features

• Center feed intake manifold for K Series K20 and K24 engines
• Brushed billet fuel rail setup (-10 or 13/16) for aftermarket Bosch style injectors
• Throttle body compatibility: 80mm, 90mm, or any with 86-93 Ford 5.0L Mustang flange, up to 105mm
• Three 1/4″ NPT vacuum ports tapped into the bottom of the intake
• Large port design for increased air volume
• Throttle body is replaceable

What’s Included

• Center feed intake manifold
• Brushed billet fuel rail (-10 or 13/16) for Bosch style injectors

Vehicle Fitment

K-swapped 1992-2000 Civic (EK with EG subframe), K-swapped 1994-2001 Integra, and other K-Series chassis (modification may be required).

Installation Notes

• Stock water pump modification is required
• AC/PS Eliminator Pulley Kit must be used
• K24 applications require K24 Intake Manifold Adapter
