GT35/GTX3582 Billet Turbocharger – T4 V-Band Turbine Housing, 0.82 A/R, Anti-Surge Cover

Description

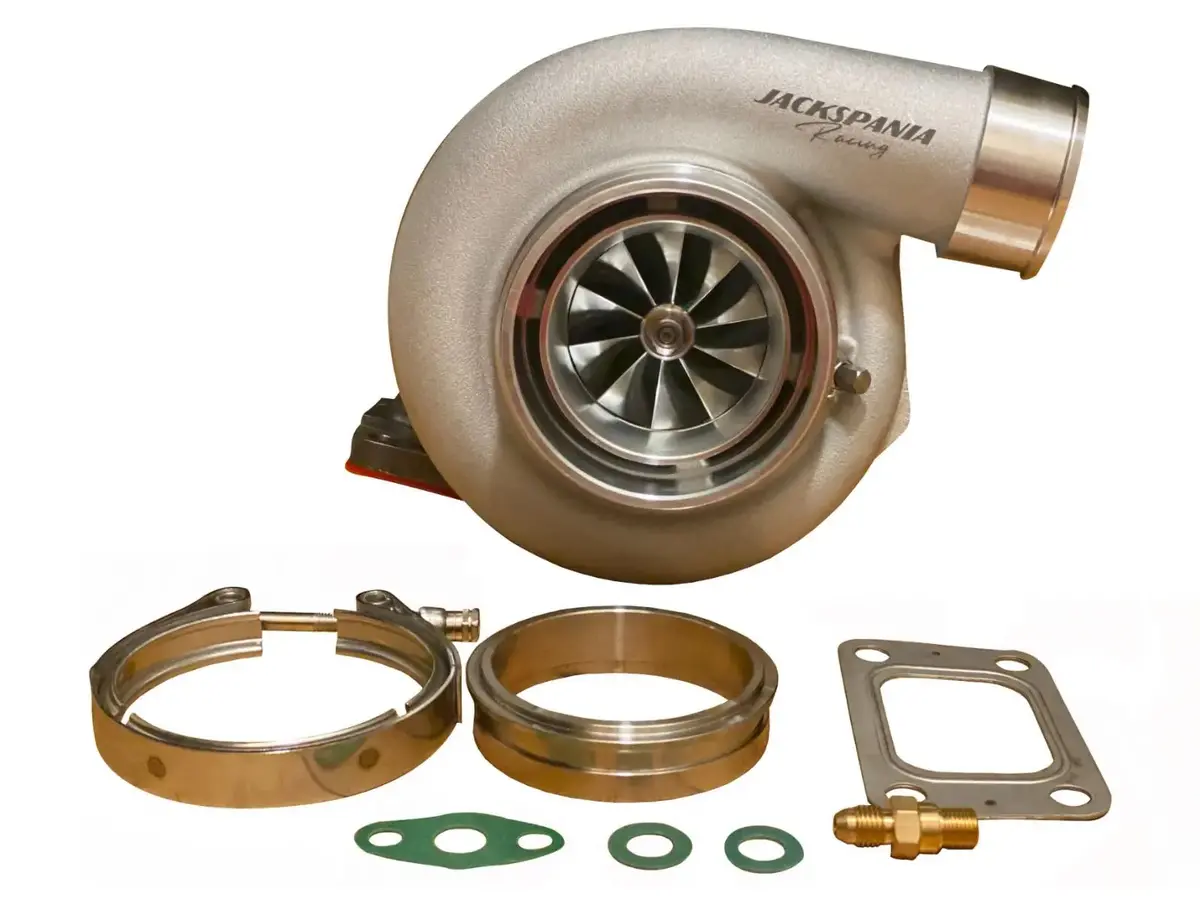

GT35 GTX3582 Billet Wheel Turbocharger with .82 A/R T4 V-Band Turbine Housing and Anti-Surge Compressor

This GT35 GTX3582 turbocharger features a billet compressor wheel and a journal bearing design. The unit is equipped with a .82 A/R T4 turbine housing with a V-band outlet and an anti-surge compressor housing. Key specifications include a 63.5mm/84mm billet compressor wheel, 68mm/62.3mm turbine wheel, and a compressor housing with a 4-inch inlet and 2.5-inch outlet.

Key Features

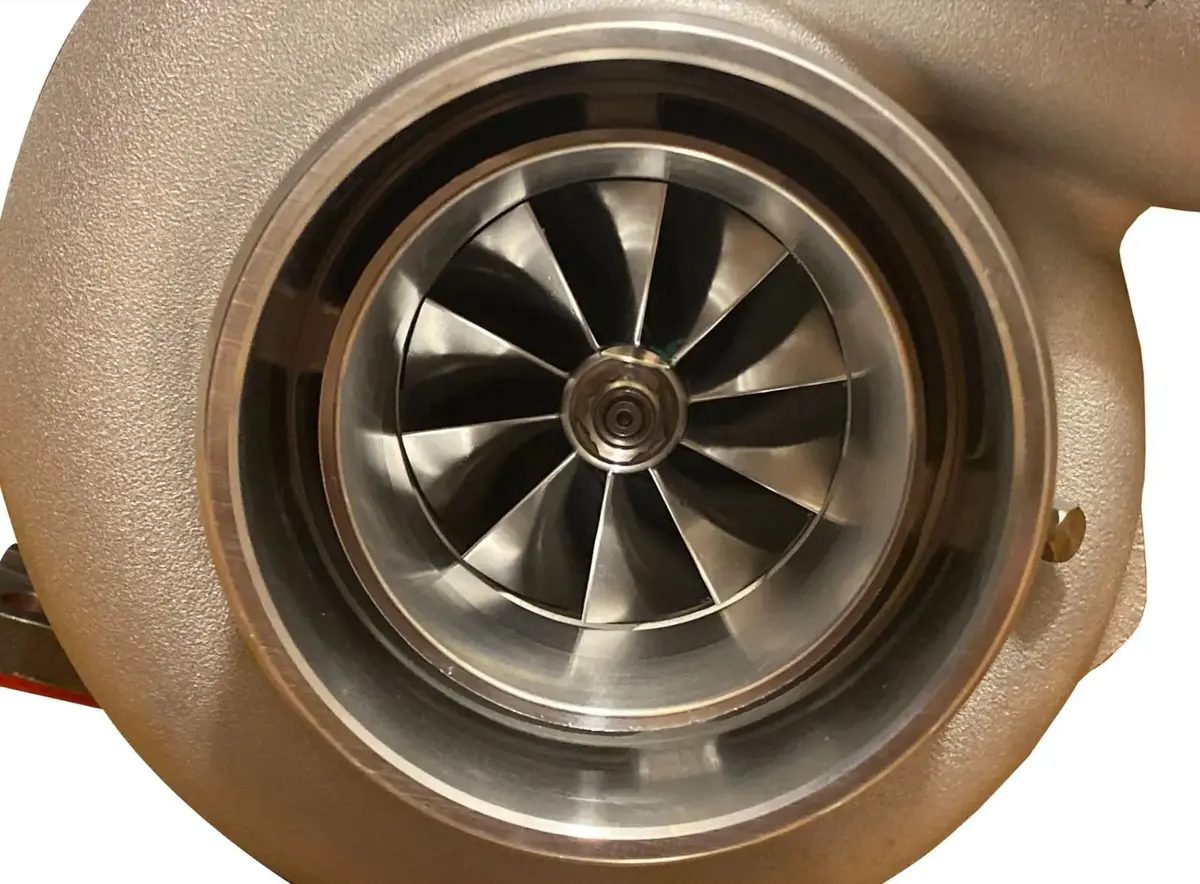

• Billet compressor wheel: 63.5mm inducer / 84mm exducer
• Compressor housing: 0.7 A/R anti-surge, 4″ inlet, 2.5″ outlet
• Turbine wheel: 68mm exducer / 62.3mm inducer
• Turbine housing: T4 inlet, V-band outlet (inner diameter approximately 3″, outer diameter approximately 3.5″)
• Turbine housing A/R: 0.82
• Journal bearing design

What’s Included

• GT35 GTX3582 billet wheel turbocharger assembly

Vehicle Fitment

Not specified by manufacturer

Installation Notes

• Recommended boost pressure is 0.5 Bar (7 psi) to 1.5 Bar (21 psi)
• Boost pressure above 2 Bar may reduce turbocharger lifespan and may result in engine damage
