GT35/GTX3582 Billet Turbocharger – T3 V-Band, 0.82 A/R, Anti-Surge Compressor Design

Description

GT35 GTX3582 Billet Wheel Turbocharger .82 A/R T3 V-Band Turbine Housing Anti-Surge

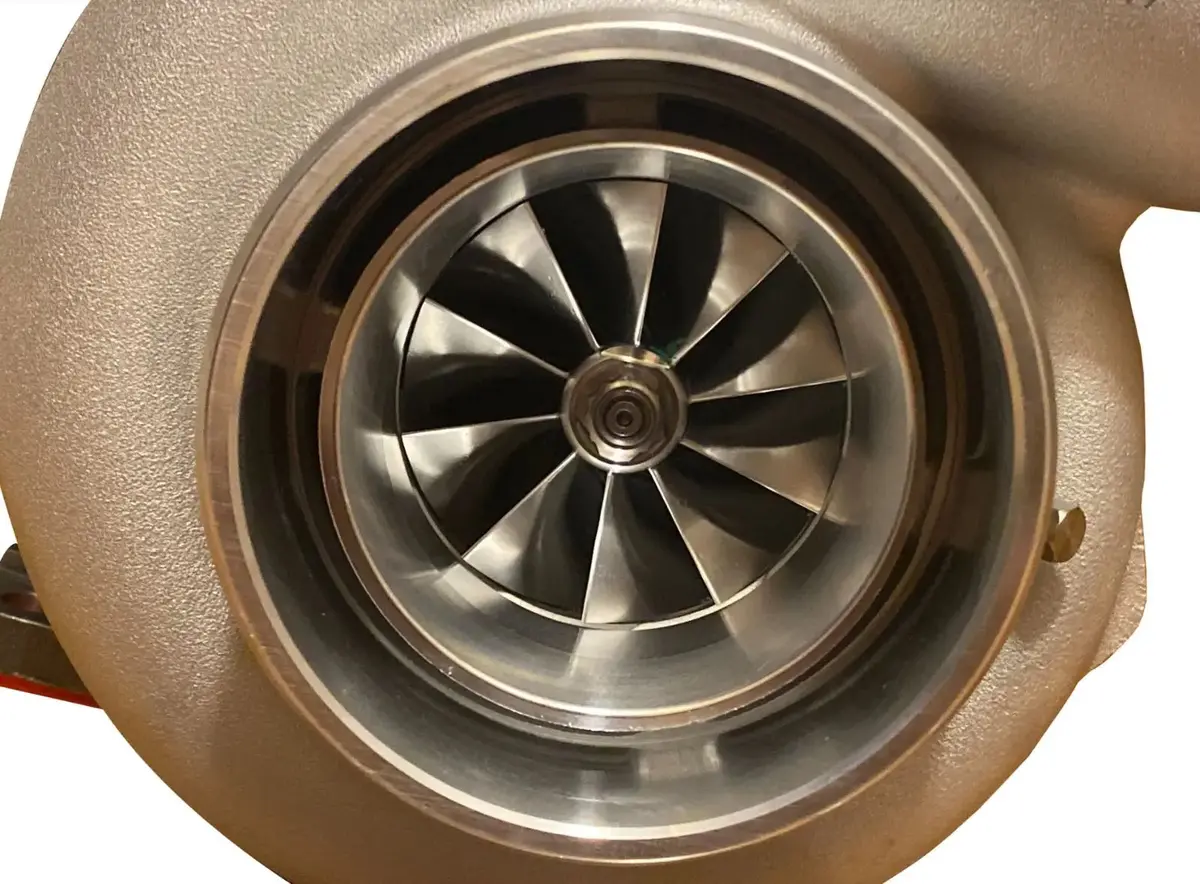

This GT35 GTX3582 turbocharger features a billet compressor wheel and a .82 A/R T3 V-band turbine housing with anti-surge design. The unit utilizes journal bearing construction and incorporates a forged billet aluminum compressor wheel for precise airflow management. Key specifications include a 4-inch compressor inlet, 2.5-inch outlet, and a 3-inch V-band turbine outlet.

Key Features

• Billet compressor wheel dimensions: 65.7mm / 82.6mm / 85.3mm
• Compressor housing: 0.72 A/R anti-surge, 4″ inlet, 2.5″ outlet
• Turbine wheel dimensions: 68mm / 62.3mm
• Turbine housing: T4 inlet, 3″ V-band outlet, 0.82 A/R
• Journal bearing design
• Oil inlet: 7/16-24 UNF
• Forged billet aluminum compressor wheel

What’s Included

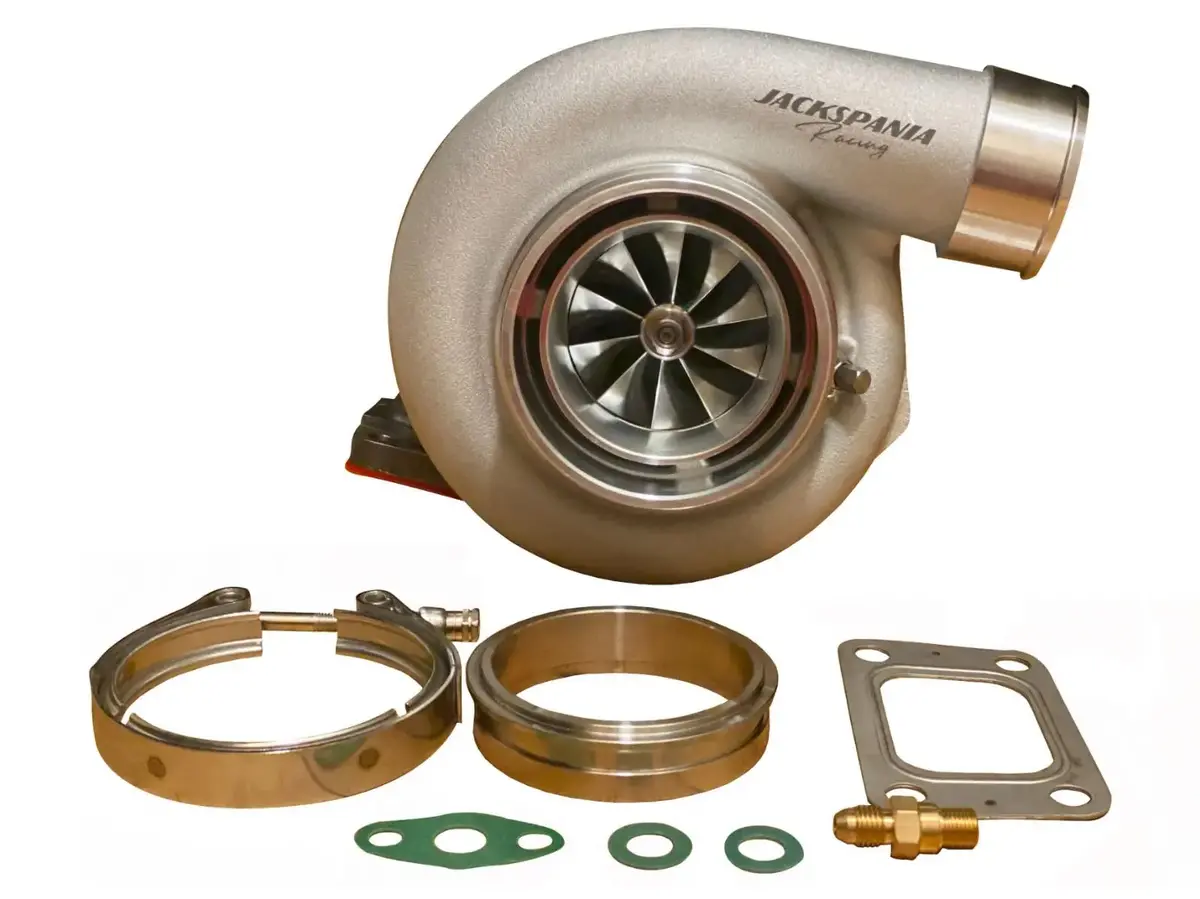

• GT35 GTX3582 billet wheel turbocharger assembly

Vehicle Fitment

Not specified by manufacturer

Installation Notes

• Professional installation is recommended
