Fabricated LS/LS3/L92 Aluminum Intake Manifold with 102mm TB Opening & Fuel Rail

Description

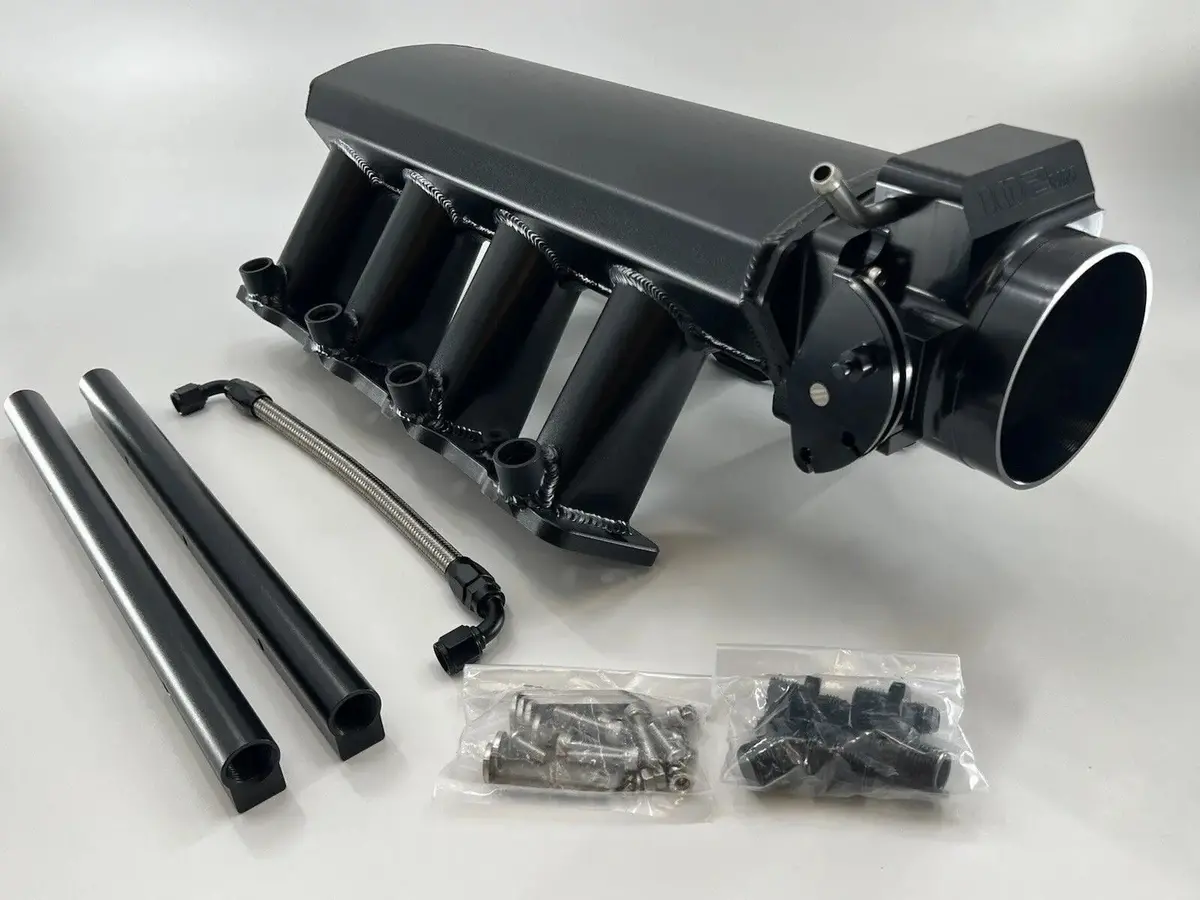

GM Chevrolet LS LS3 L92 Fabricated Aluminum Intake Manifold with 102mm Throttle Body Opening and Fuel Rail

This fabricated aluminum intake manifold is engineered for GM Chevrolet LS, LS3, and L92 applications. Constructed from 3.5mm thick T-6061 aluminum, it features a 102mm throttle body opening and velocity stacked runners for optimized airflow. The manifold is TIG welded and includes individual port O-rings, with finish options in clear or black anodized anodizing for a refined appearance.

Key Features

• Fabricated from 3.5mm thick T-6061 aluminum
• 102mm throttle body opening
• Velocity stacked runners
• TIG welded construction
• Individual port O-rings for cylinder heads and throttle body
• Available in clear or black anodized finishes
• 7/16″ thick head flanges
• Plenum designed to handle up to 25 lbs of boost

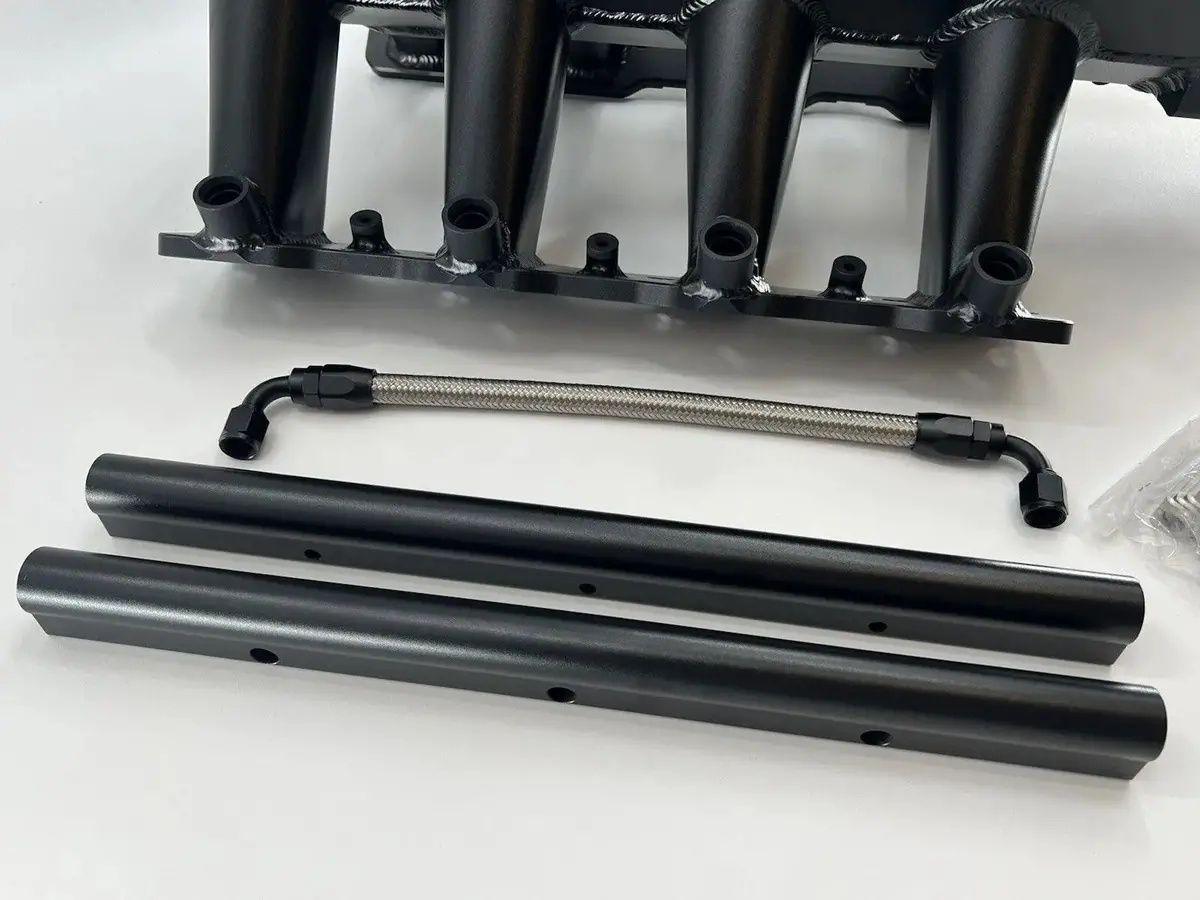

• Includes fuel rail

What’s Included

• Fabricated aluminum intake manifold
• Fuel rail

Vehicle Fitment

Chevrolet Small Block V8 GEN. III/IV (LS-based) engines, including:
4.8 L / 293 in³ (L20, LY2)
5.3 L / 325 in³ (LC9, LH6, LH8, LMG, LY5)
6.0 L / 364 in³ (L76, L96, LFA, LY6)
6.2 L / 376 in³ (L92, L99, LS3, LSA)
Fits LS-based engines with “Rectangular” intake port shape only.

Installation Notes

• Designed for LS-based engines with rectangular intake port shape only
