Description

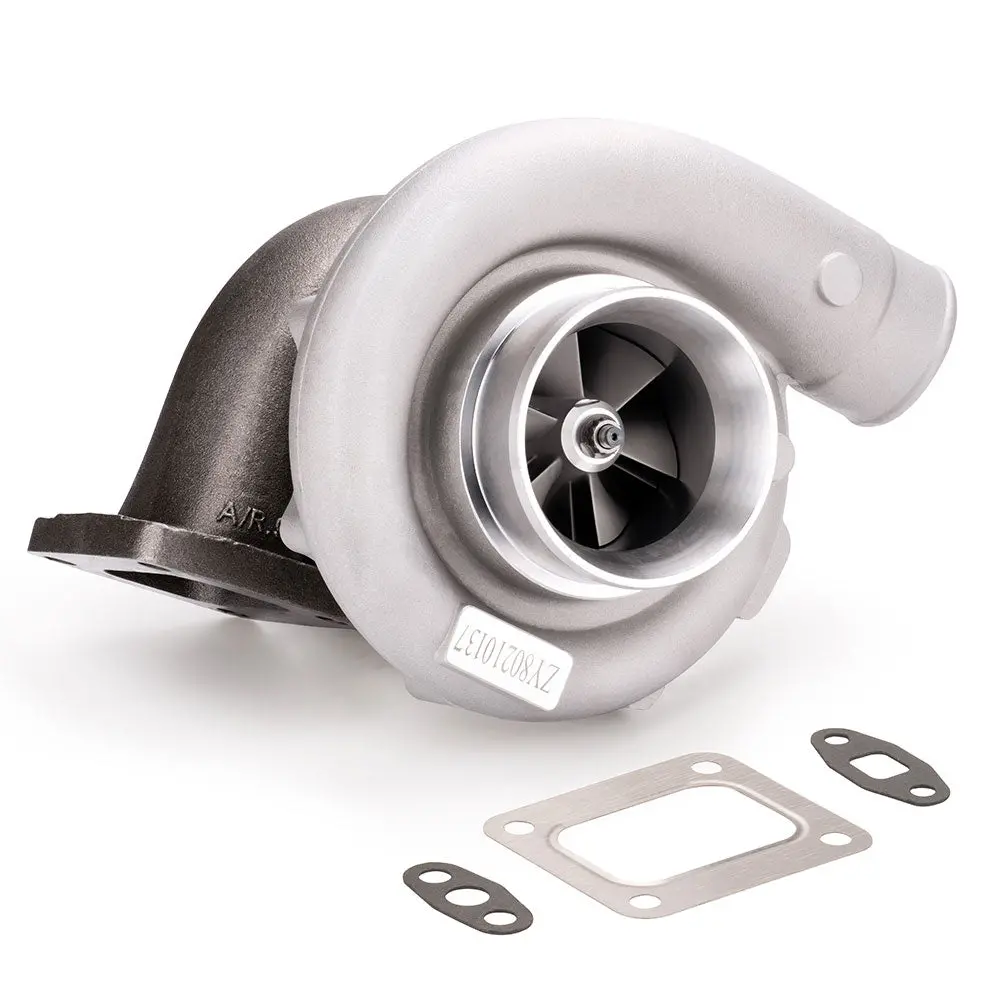

This turbo is a universal application and designed for daily street use and
junior track use.
For 1.5L to 2.5L any 4/6 cylinder engine
Maximum 18PSI
Note:Please confirm that your car’s displacement is between 1.5-2.5L .
Please check the size before purchasing and make sure that your car has enough
space to install this turbo.
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet：44.5mm/81mm
Compressor outlet：45mm(inside diameter)、53mm(outer diameter)
Compressor inlet：68 mm(inside diameter)、72mm(outer diameter)
Horsepower: Up to 400+HP
Condition: New
Package Size:26x 24x 23 cm
Package Weight: 7250g
Product Material
1. Turbine housing: Silicon-Molybdenum – temperature resistant up to 850℃
2. Steel Turbine Wheel: K419 alloy – high oxidation stability and resistance
up to 1000℃
3. Compressor housing: ZL104 aluminium with lightweight
4. Compressor wheel/blades: Aluminum blades-precision machining forging and
lightweight design
Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Excellent high-temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. Quality assurance
5. High-speed oil seal ring
6. Strict quality inspection
7. Improve emissions & save oil
All necessary gaskets included for ease of installation
Professional installation is highly recommended (No Instruction Included).
This Turbo is not vehicle specific. It is compatible with a wide range of applications. Therefore please check the specifications and verify compatibility prior to placing your order.
