Description

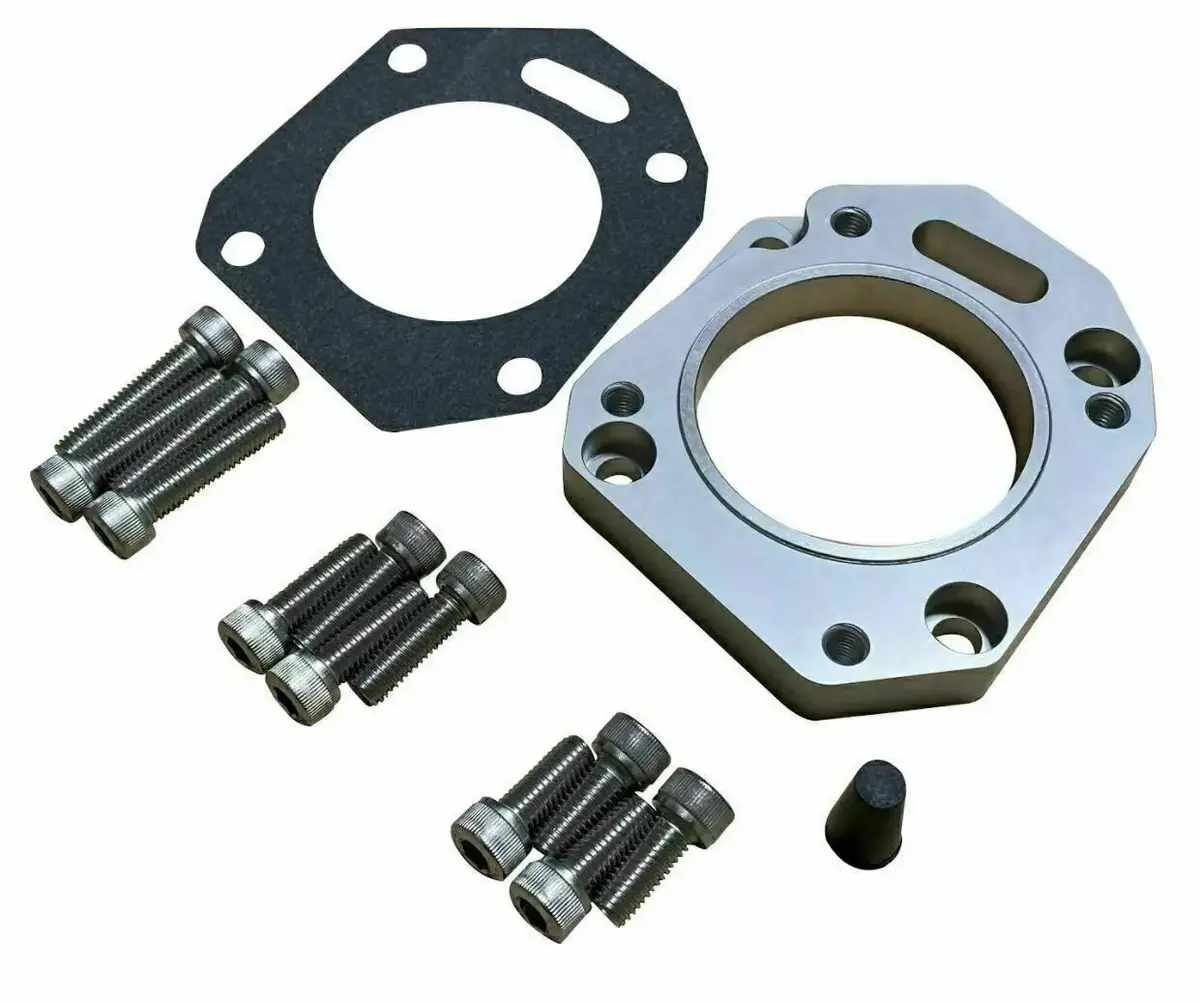

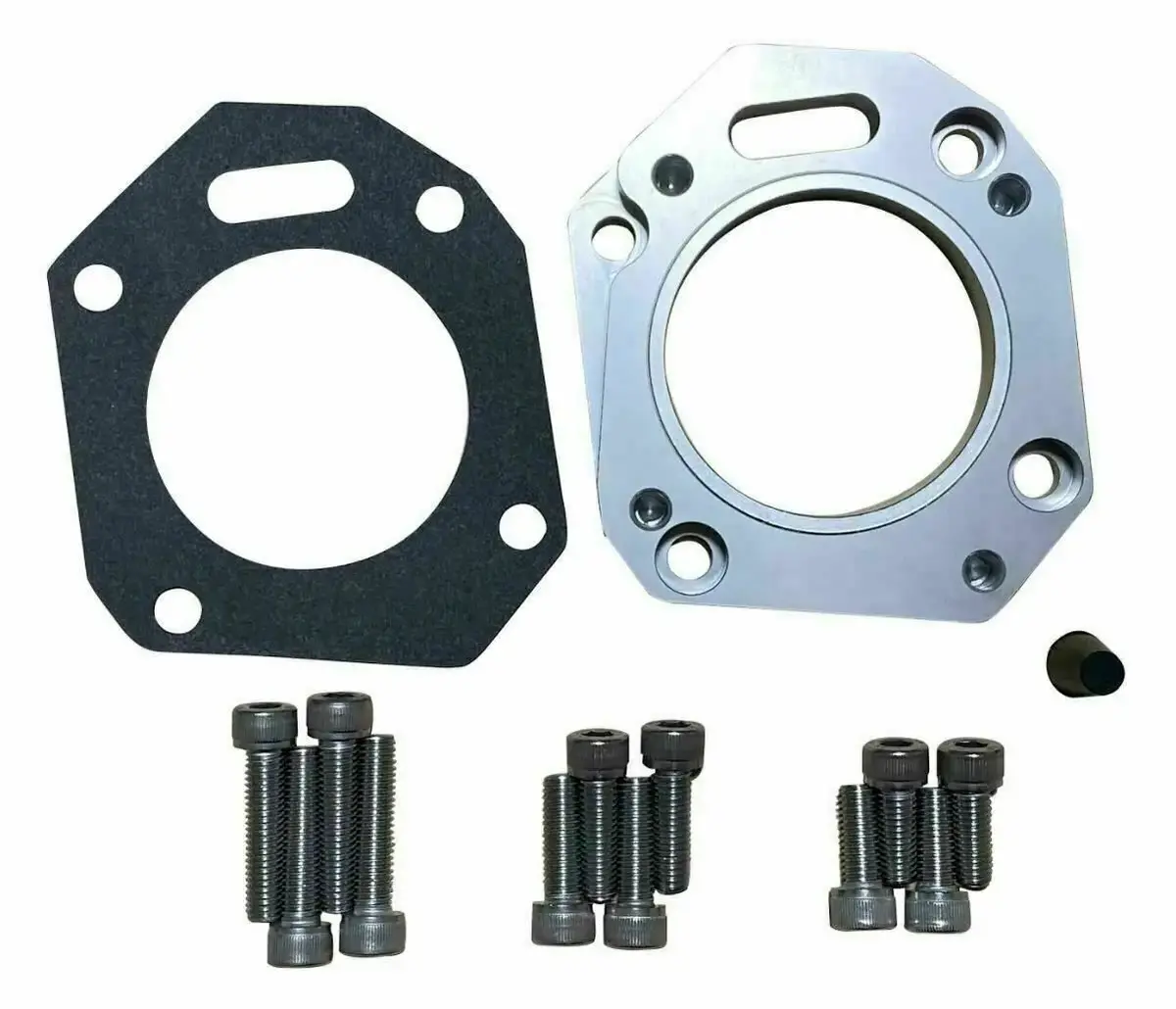

K20 K24 K Series RBC Throttle Body Adapter Plate for Honda Acura
This throttle body adapter plate is designed for K20 and K24 K Series engines, enabling the installation of select throttle bodies onto RBC, RRB, or RBB intake manifolds. The adapter facilitates direct mounting of 2002-2006 RSX-S/ITR or 2002-2005 Civic Si/CTR throttle bodies to compatible intake manifolds such as those found on Accord Euro R, 2006-2009 Civic Si, or 2004-2005 TSX models. All necessary mounting hardware and rubber plugs for unused ports are included to support a straightforward installation process.
Key Features
- Adapter plate for K20A/A2/A3/Z1 throttle body to RBC/RRB/RBB intake manifold
- Enables direct mounting of 2002-2006 RSX-S/ITR or 2002-2005 Civic Si/CTR throttle bodies
- Compatible with Accord Euro R, 2006-2009 Civic Si, and 2004-2005 TSX intake manifolds
- Includes mounting hardware for adapter and throttle body installation
- Two rubber plugs provided for unused MAP sensor and EVAP Purge Control Valve ports
What’s Included
- Throttle body adapter plate
- All required mounting hardware
- Two rubber plugs for unused ports
Vehicle Fitment
1992-1995 Honda Civics with K20 engine and Hasport EGK1 engine mounts
1996-2000 Honda Civics with K20/K24 engine and Hasport EKK2 engine mounts
1994-2001 Acura Integras with K20 engine and Hasport EGK1 engine mounts
2002-2006 Acura RSX-S/Honda ITRs with K20 engine and all available engine mounts
Other chassis, mounts, and engine combinations may require modifications for clearance.
Installation Notes
- Minor trimming of the upper radiator support may be required for certain chassis, such as the 2002-2005 Honda Civic Si/CTR, to accommodate the RBC intake manifold.
- Clearances between the radiator support, radiator, and hood should be checked and addressed as needed.
