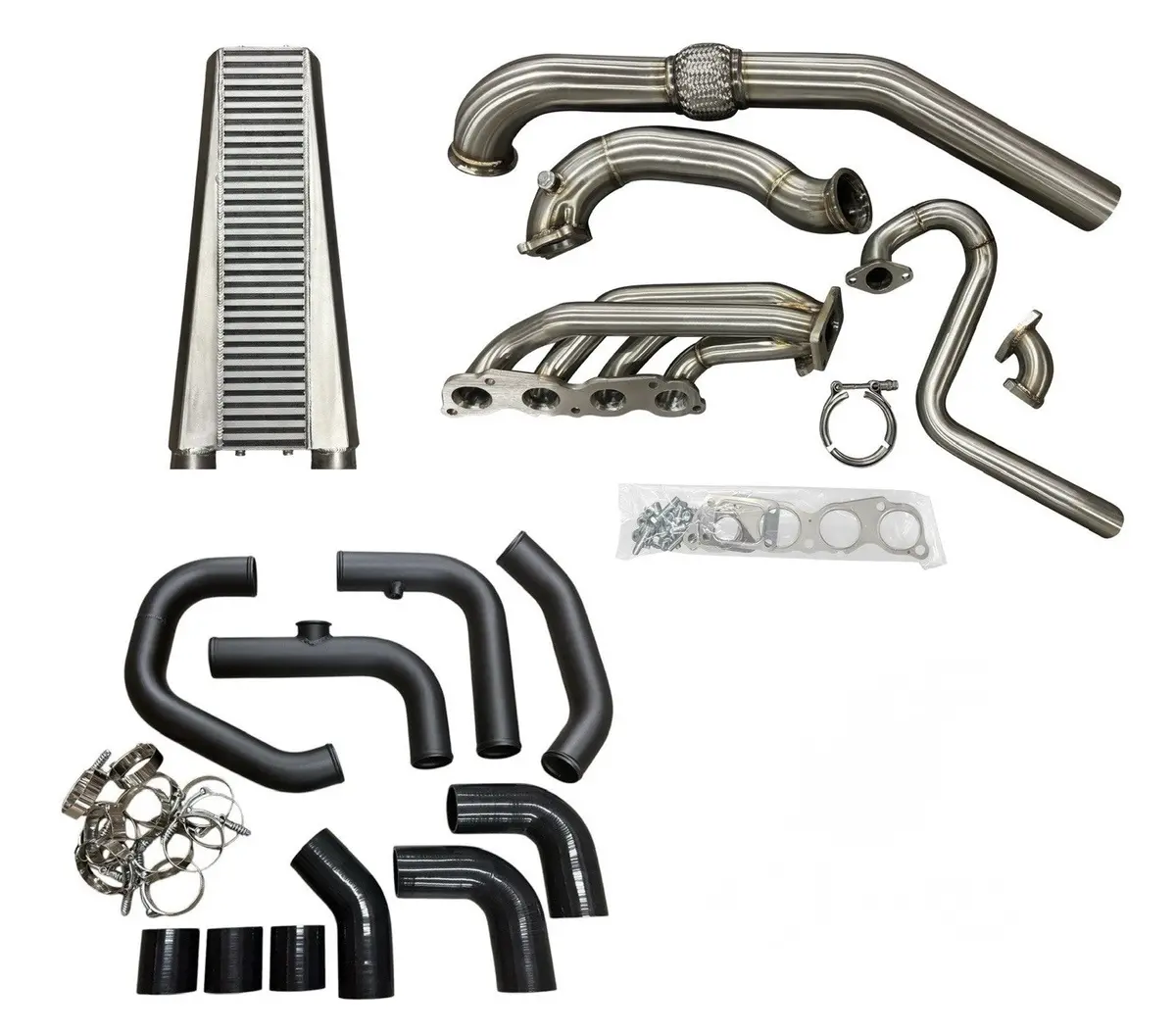

K-Series Turbo Manifold & Intercooler Kit (K20/K24) for 2006–2011 Honda Civic Si

Description

Intercooler Info:

• Core Size: 24″ x 7″ x 3.5″
• Overall Size: 27″ x 12.5″ x 3.5″
• Air to air intercooler core
• High density, high quality core
• Bar and plate construction
• 3″ inlet & 3″ outlets
• Rated for 700HP

Manifold Info:

Made of 304 grade stainless steel

One year limited warranty

CNC machined manifold flange

Flange is 1/2 inch thick

Thick 8 gauge / Schedule 40 pipe

2 bolt wastegate flange & t3 turbo flange

Flanges surfaced for perfect seal

Fully ported

Professionally TIG welded and assembled

Coolant lines may need to be modified or rerouted

Downpipe Info:

3″ Stainless Steel Downpipe

2.5″ 4 Bolt Turbo Adapter Flange

Wastegate Dump Tube

3 x O2 Sensor Bungs, Easier for Tuning

Intercooler Piping Info:

• Designed to be specifically used with our V2 style intercooler
• Meant to be used with a RBC style intake manifold, some manifolds like skunk 2 pro series manifolds which angle the throttle body at a different direction you will need to buy angled silicone coupler to make the proper connection.
• This kit will support up to 700hp
• Features a 50mm Flange for TiAL blow off valves

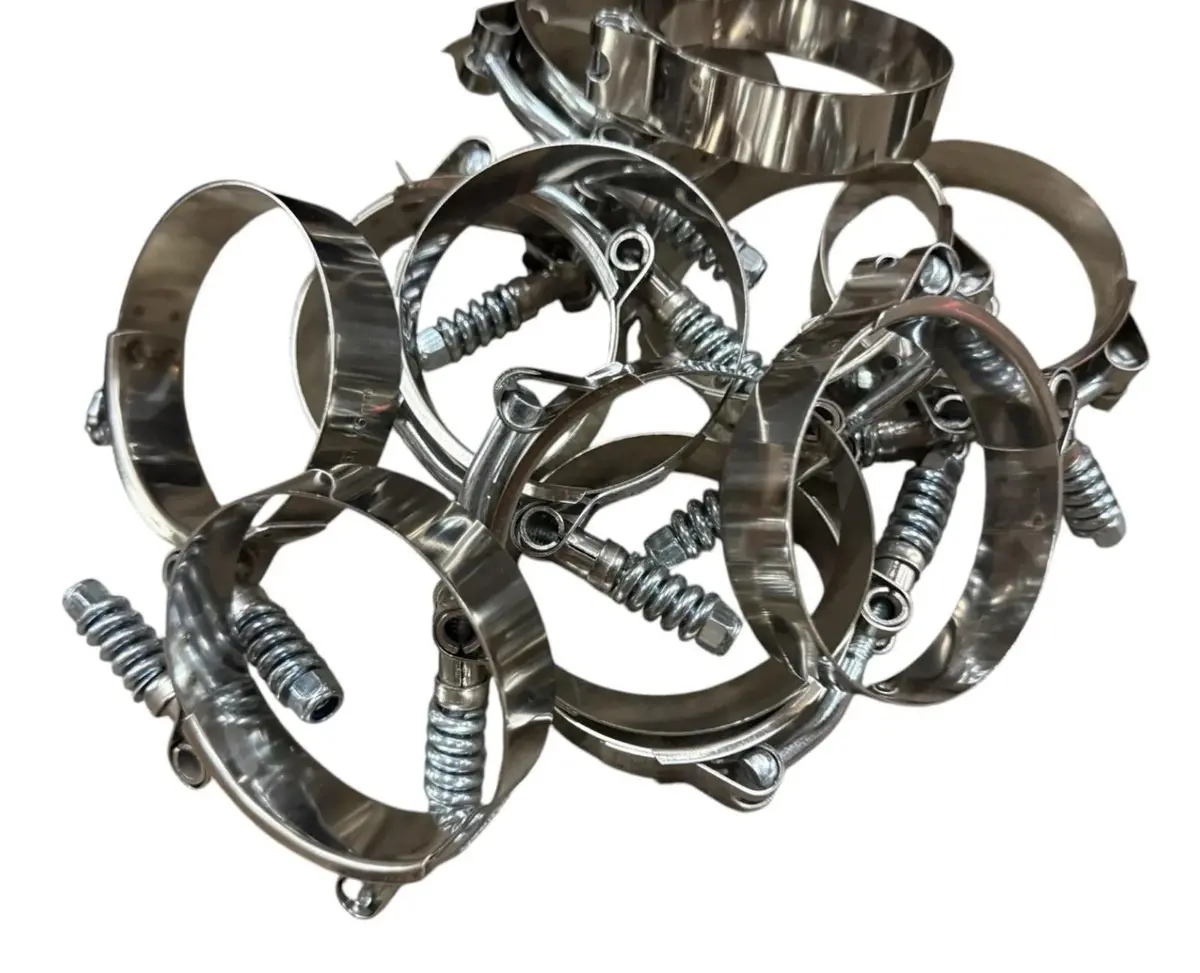

• High quality 3 layer silicone coupler and stainless steel T bolt clamp is included
• 2.5″ intercooler piping kit
• Features an intake temperature sensor bung
