K-Series Dual Ball Bearing Turbo Sidewinder Manifold & Intercooler Kit (K20/K24)

Description

K Series K20 K24 Dual Ball Bearing Turbo Sidewinder Manifold and Intercooler Kit

This turbo kit is designed for K Series K20 and K24 applications and includes a dual ball bearing turbocharger, sidewinder manifold, and air-to-air intercooler. The kit features a high-density bar and plate intercooler core, a 304 grade stainless steel manifold, and a turbocharger with specified compressor and turbine dimensions. All components are engineered with precision manufacturing techniques and quality materials.

Key Features

• Intercooler core size: 24″ x 7″ x 3.5″
• Intercooler overall size: 27″ x 12.5″ x 3.5″
• Air-to-air intercooler core with bar and plate construction
• 3″ inlet and 3″ outlet on intercooler
• High-density, high-quality intercooler core
• Manifold constructed from 304 grade stainless steel
• CNC machined manifold flange, 1/2 inch thick
• 8 gauge / Schedule 40 manifold pipe
• One piece manifold design with 44mm wastegate flange
• Flanges surfaced for sealing
• Fully ported and TIG welded manifold
• Low angle merge collector
• Turbocharger compressor wheel: 65.7mm / 82.6mm / 85.3mm
• Turbocharger compressor housing: 0.72 A/R anti-surge, 4″ inlet, 2.5″ outlet
• Turbocharger turbine wheel: 68mm / 62.3mm
• Turbocharger turbine housing: T3 inlet, V-band 3″ outlet, A/R 0.82
• Turbocharger oil inlet: 7/16-24UNF
• Brand new in box
• One year limited warranty

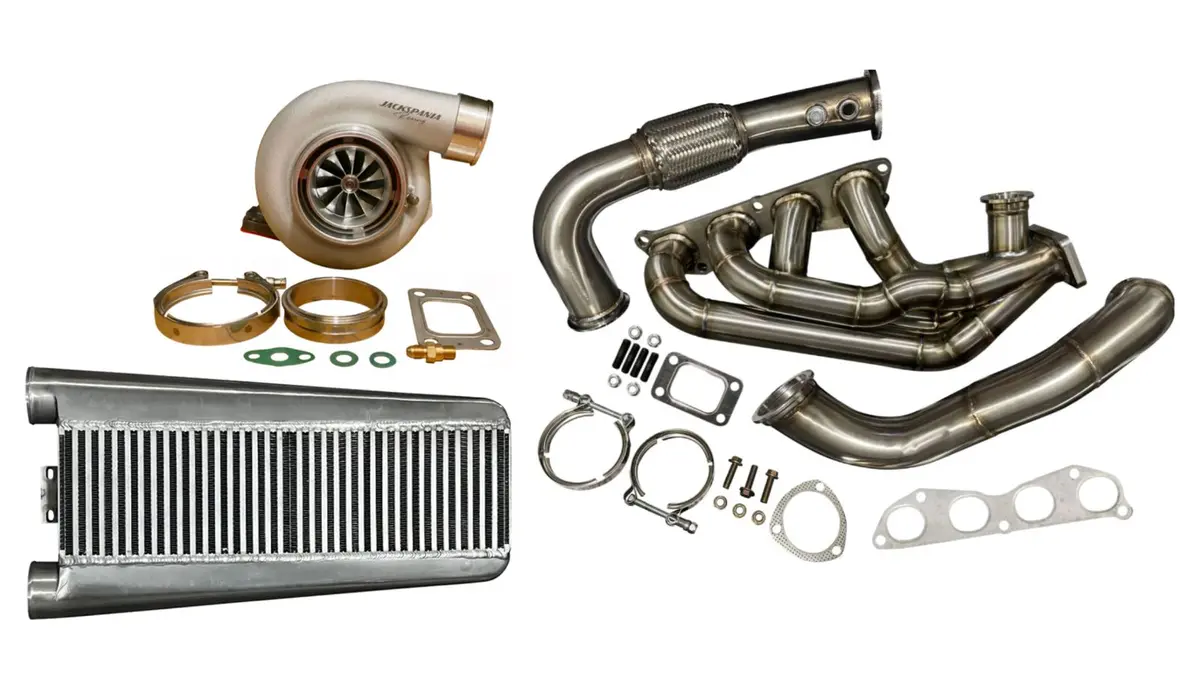

What’s Included

• Dual ball bearing turbocharger
• Sidewinder manifold
• Air-to-air intercooler
• All items as pictured

Vehicle Fitment

Not specified by manufacturer

Installation Notes

• Coolant lines may need to be modified or rerouted
