Description

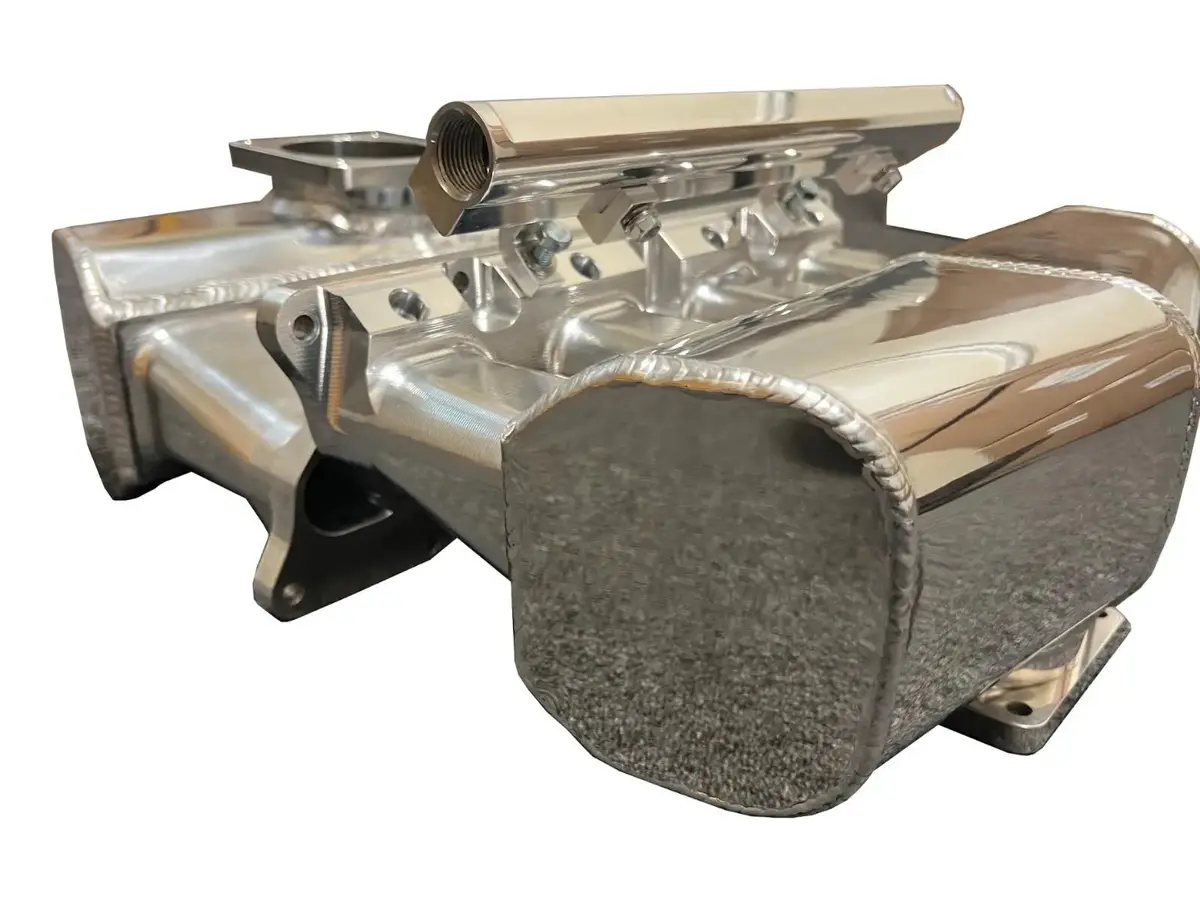

K Series K20 K24 Center Feed Intake Manifold with Brushed Fuel Rail
This center feed intake manifold is engineered for K Series K20 and K24 applications. It features a brushed billet fuel rail designed for aftermarket Bosch style injectors and supports throttle bodies ranging from 80mm to 105mm, including compatibility with the 86-93 Ford 5.0L Mustang flange. The manifold includes three 1/4″ NPT vacuum ports on the underside for clearance and is intended as a replacement for the OEM intake manifold.
Key Features
- Center feed intake manifold for K Series K20 and K24
- Brushed billet fuel rail (-10 or 13/16 setup for aftermarket Bosch style injectors)
- Throttle body compatibility: 80mm, 90mm, and up to 105mm; accepts 86-93 Ford 5.0L Mustang flange
- Three 1/4″ NPT vacuum ports tapped into the bottom of the intake
- Large port design
What’s Included
- Center feed intake manifold
- Brushed billet fuel rail
Vehicle Fitment
K-swapped 1992-2000 Civic (EK with EG subframe), K-swapped 1994-2001 Integra, other K-Series chassis (may require modification to fit).
Installation Notes
- Stock water pump modification required
- AC/PS Eliminator Pulley Kit must be used
- K24 applications require K24 Intake Manifold Adapter
