GT3584/GTX3584RS Billet Turbo – T3 Flange, .82 A/R V-Band Housing, Anti-Surge Design

Description

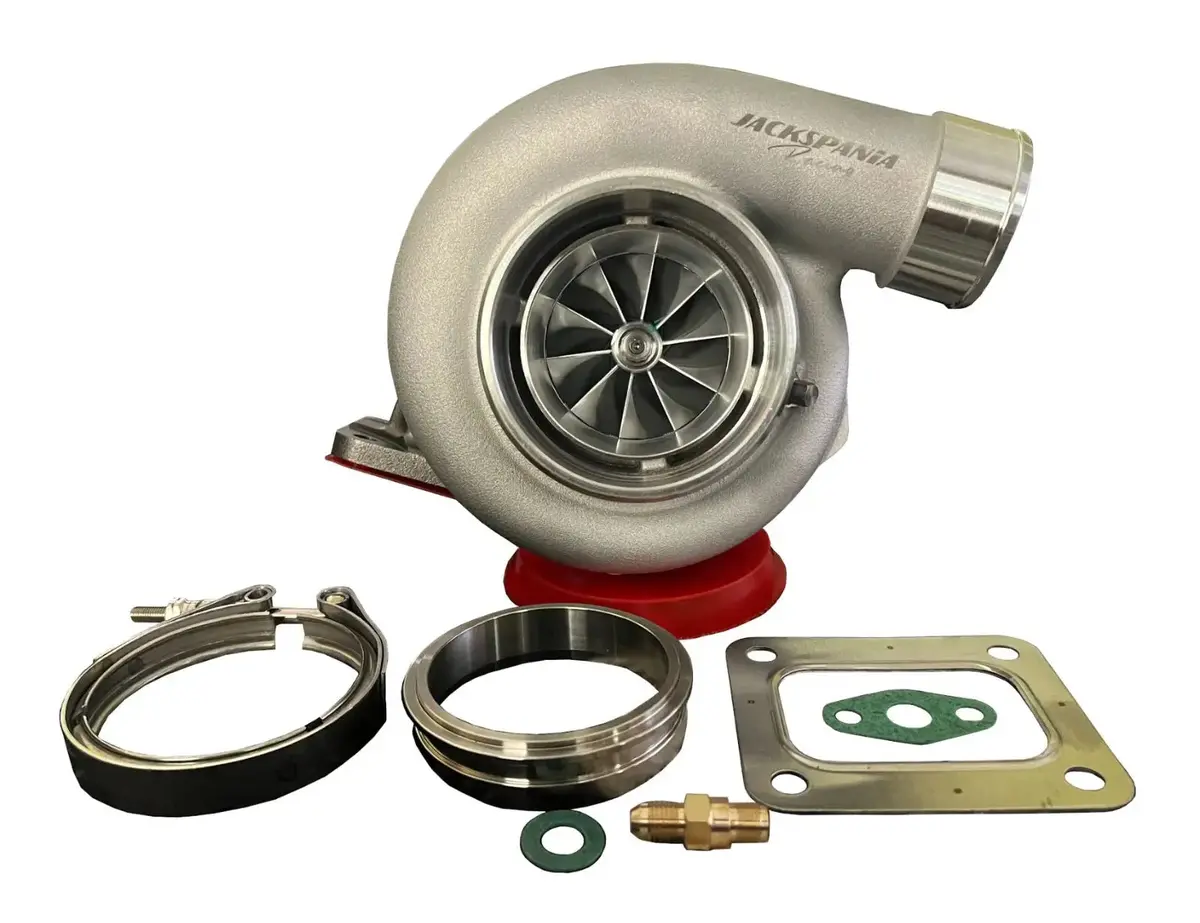

GT3584 GTX3584RS Billet Wheel Turbocharger T3 0.82 A/R V-Band Turbine Housing Anti-Surge

The GT3584 GTX3584RS Billet Wheel Turbocharger features a 0.82 A/R T3 V-Band turbine housing with an anti-surge design. This journal bearing turbocharger is engineered with a billet compressor wheel and a high-flowing turbine wheel. Designed for engine displacements ranging from 2.0L to 5.5L, it incorporates precise specifications for reliable operation.

Key Features

• Journal bearing construction
• Billet compressor wheel: 10+0 blade, 67mm inducer / 84mm exducer
• “RS” high-flowing turbine wheel: 68mm exducer / 62.3mm inducer
• Turbine housing: 0.82 A/R T3 inlet or 0.82 A/R T4 inlet
• V-Band turbine housing
• Anti-surge compressor housing
• Recommended boost pressure: 0.5 Bar (7 psi) to 1.5 Bar (21 psi)
• Engine displacement range: 2.0L – 5.5L

What’s Included

• GT3584 GTX3584RS Billet Wheel Turbocharger assembly

Vehicle Fitment

Not specified by manufacturer

Installation Notes

• If boost pressure exceeds 2 Bar, turbocharger lifespan may be significantly reduced and engine damage may occur.
