Description

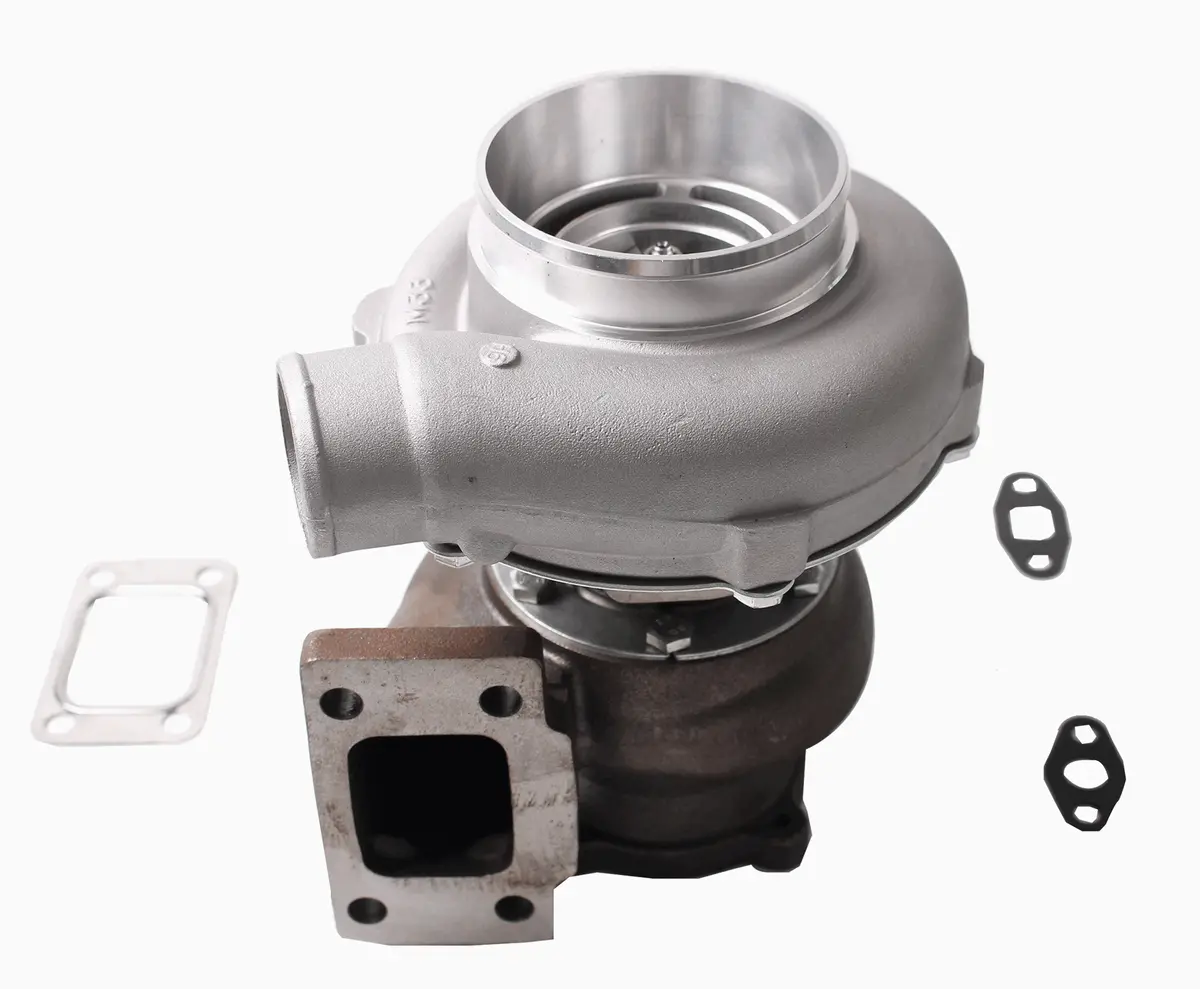

Featuring advanced engineering without compromise, our turbocharger is designed to push the boundaries of performance with precision and power.
Specifications:
- Dual Ceramic Ball Bearing System: Enhancing efficiency and durability for sustained high-performance use.
- 9 Blade Gen2 Billet Compressor Wheel: Incorporating Extended Tapered Tip Technology for optimized airflow.
- Inconel 713c 10 Blade Turbine Wheel: A robust turbine wheel ensuring longevity and resistance to high temperatures.
- Gen2 Cover with Speed Sensor Port: Seamlessly integrated for enhanced monitoring and control.
- Turbine Housing: Choose from 0.83 A/R dual v-band, T3 0.63, 0.82 V-Band outlet, and other turbine housing options.
- V-Band Flange Kit(s): Included for convenient exhaust housing installation.
- Max Air Flow Rate: Approximately 65 lb/min, rated for an impressive 750 FWHP.
Description:
- Compressor Wheel: 58*76mm for optimal air compression.
- Turbine Wheel: 60*55mm, engineered for efficient exhaust gas utilization.
- Compressor Inlet: Accommodates a 4″ hose, ensuring smooth airflow.
- Compressor Outlet: Compatible with a 2″ hose for efficient discharge.
- Turbine Inlet: Choose between T3, T4, or a 2.5″ V-Band for versatility.
- Turbine Outlet: Features a 3″ V-Band (3.55″OD) for seamless integration.
- Oil Feed: -4 AN connection to the Oil Restrictor for consistent lubrication.
- Oil Drain: Standard T3 flange for ease of maintenance.
- Water In/Outlet: M14*1.5 connections for efficient water cooling.
For optimal durability, we highly recommend implementing water cooling. Elevate your vehicle’s performance with this turbocharger that combines cutting-edge specifications with reliability, providing the power you need for an exhilarating driving experience.
