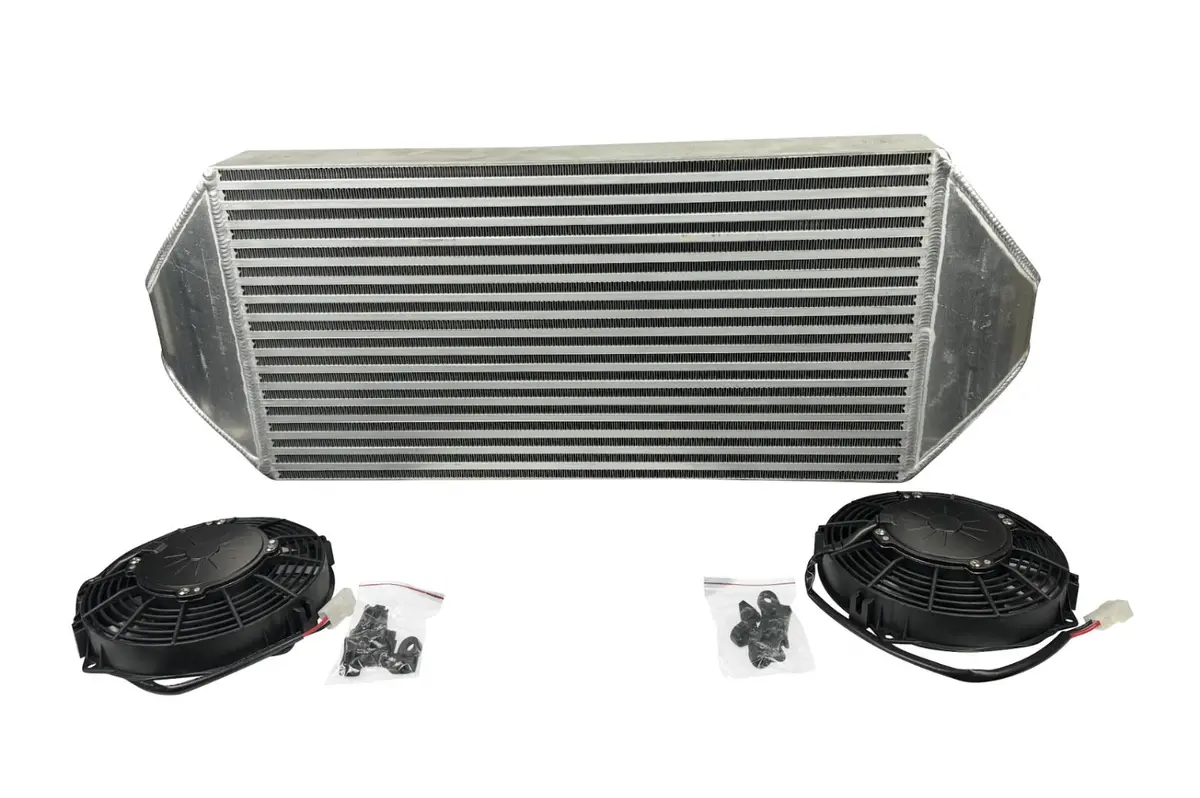

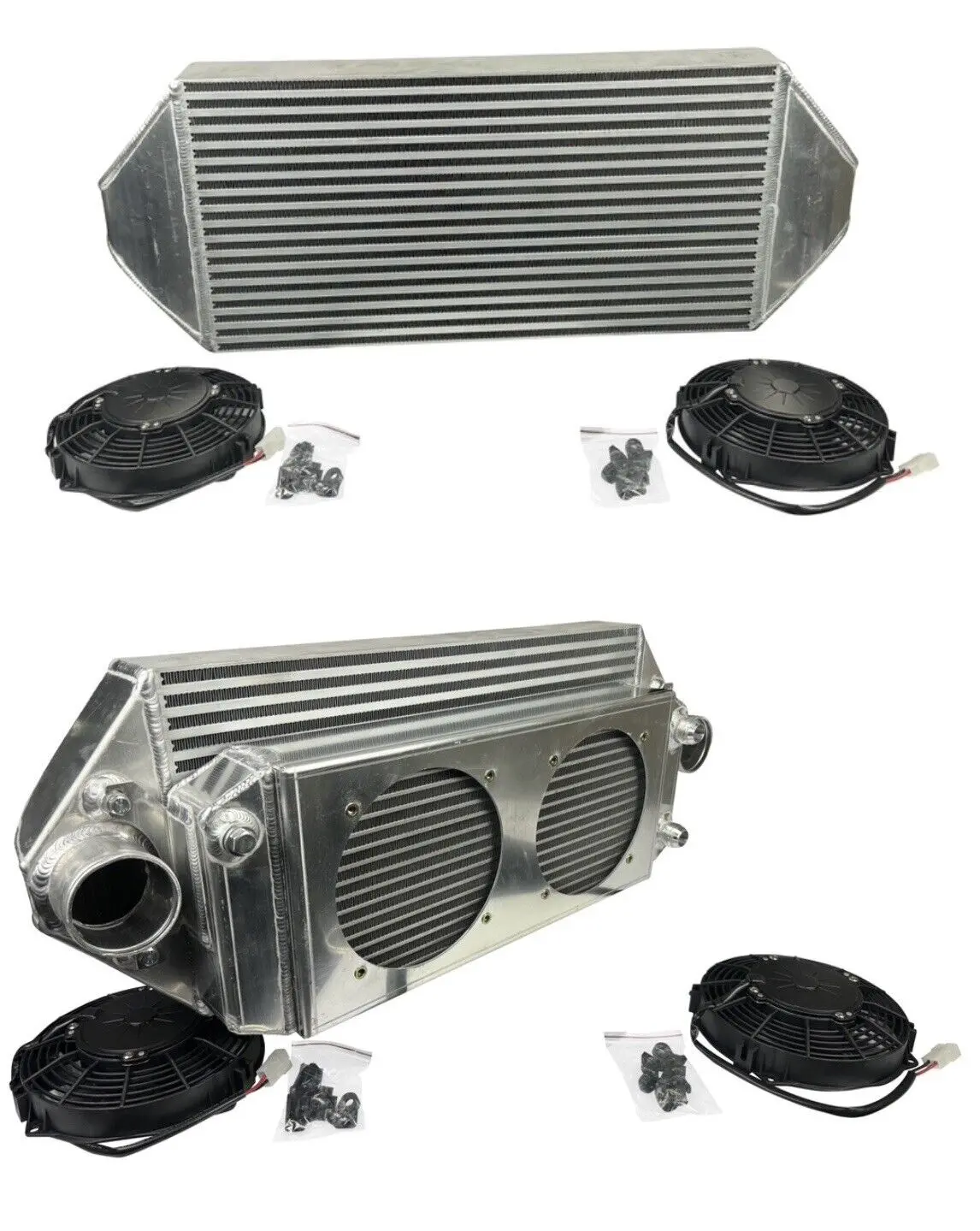

Dual 3-Inch Front-Mount Intercooler + Full-Size Radiator Combo — 16AN Fittings, Tucked Design

Description

Overall Product Dimensions: 32.5″ width x 12″ tall x 9″ thick Brief Intercooler

Description:

• Efficiently cools air into the engine system to increase engine performance and overall power output.
• Best used as for Honda street intercoolers, ideal for both bottom & top mount manifolds.
• Slight modification to most if not all Honda / Acura chassis may require slight modification and/or trimming to front bumper area for proper clearance.

Product Features:

• Bar over plate core design
• Air to air intercooler core
• Fully TIG welds
• Features 3″ dual inlet / outlet bead rolled tube ends.
• Rated for up to 600-850HP
• M8 x 1.25mm mounting bungs
• Core Size: 24″ x 12″ x 3″
• Overall Length: 32.5″ x 12″ x 3″

Brief Radiator Description: Features:

• Size: 24″ x 12″ x 3.5″ (without fans)
• Overall length: 30″ with end brackets
• Drain plug size is 1/4 NPT
• Mounting brackets are removable & bolted on, so it can be used for other applications.

Applications:

• Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
• Honda Acura K-Series K20 K24 K20A K20Z
• May also fit other cars (refer to size dimension above)

Includes:

• 2 x 16AN fittings.
• mounting brackets
• brackets hardware
• 2 x fans 7.5″ Straight Blade Puller Fan, 437 CFM
