Custom-Fabricated LS7 Intake Manifold – 102mm EFI, T6061 Aluminum, GM LS Platform

Description

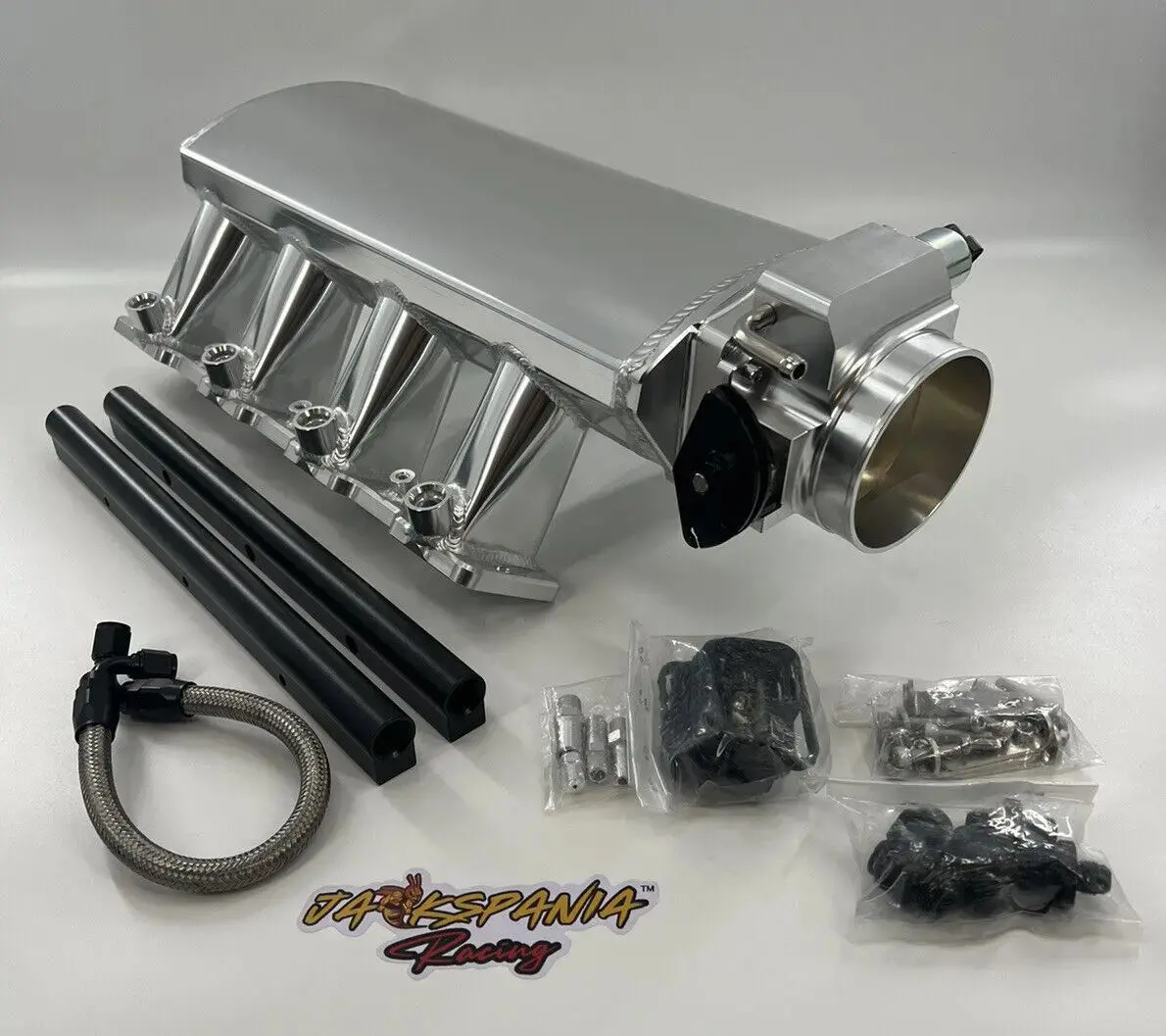

Fabricated Aluminum Intake Manifold 102mm EFI Sheet Metal for GM LS7

This fabricated aluminum intake manifold is engineered for GM LS7 applications and features a 102mm throttle body opening. Manufactured from 3.5mm thick T-6061 sheet metal aluminum, the manifold is TIG welded and finished with clear anodizing. The design incorporates EFI compatibility and includes port O-rings and mounting hardware.

Key Features

• Application: GM LS7
• Material: 3.5mm thick T-6061 sheet metal aluminum
• Construction: 100% fabricated and TIG welded
• Throttle body inlet bore: 102mm
• Style: EFI
• Finish: Clear anodized
• Intake height: 6.750″
• Vacuum port size: 3 x 1/8″ NPT and 1 x 1/4″ NPT
• RPM range: 1500–6500
• Fuel rails: Not included

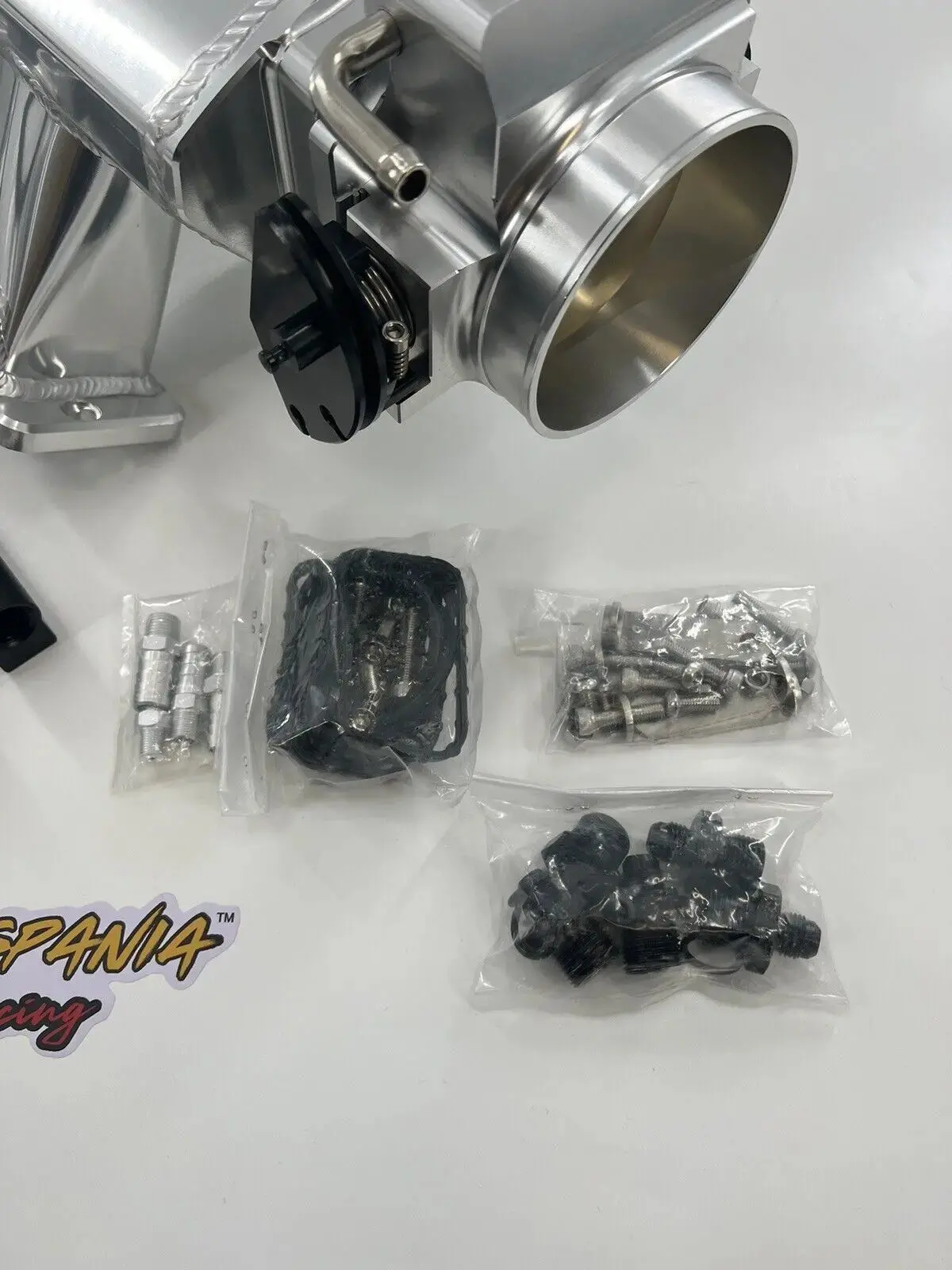

What’s Included

• Fabricated aluminum intake manifold
• Port O-rings
• Mounting hardware

Vehicle Fitment

GM LS7 applications

Installation Notes

• Fuel rails are not included
