Description

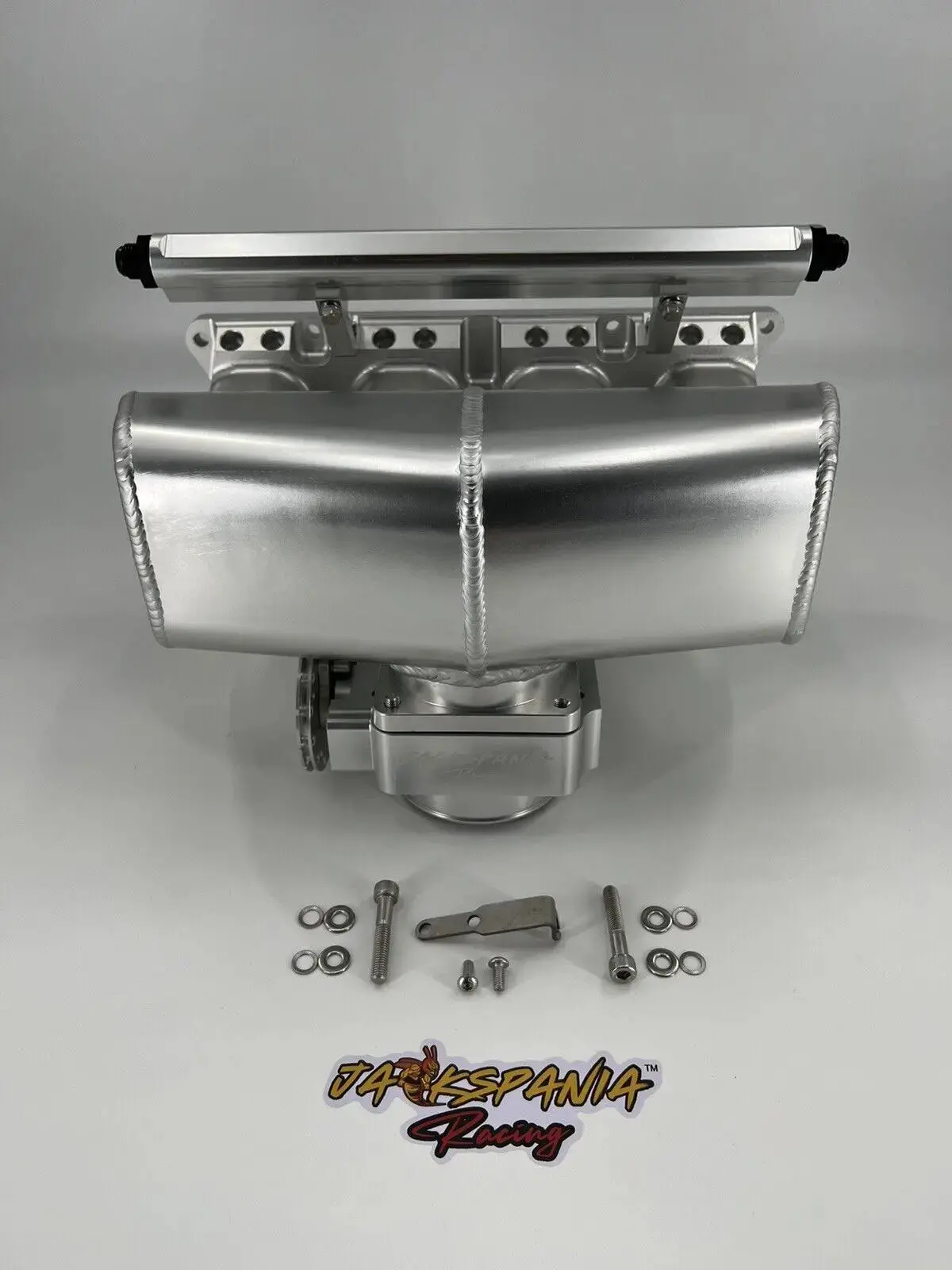

Billet K Series K20 K24 Center Feed Intake Manifold Dual Injector
This billet center feed intake manifold is engineered for K Series K20 and K24 applications. The manifold features a dual injector configuration and is supplied with a brushed billet fuel rail designed for aftermarket Bosch style injectors. The assembly includes a billet 90mm throttle body and supports throttle bodies ranging from 80mm to 105mm, including compatibility with the 86-93 Ford 5.0L Mustang flange. The design incorporates three 1/4″ NPT vacuum ports and is intended as a replacement for the OEM intake manifold.
Key Features
- Billet construction
- Center feed intake manifold for K Series K20 and K24
- Dual injector setup (8 injector intake manifold configuration)
- Brushed billet fuel rail compatible with -10 or 13/16 fittings for aftermarket Bosch style injectors
- Throttle body fitment: 80mm and 90mm, or any throttle body with 86-93 Ford 5.0L Mustang flange, accepts up to 105mm
- Includes three 1/4″ NPT vacuum ports tapped into the bottom of the intake
- Large port design
- Includes AN6 and AN8 fittings
What’s Included
- Billet center feed intake manifold
- Brushed billet fuel rail
- Billet 90mm throttle body
- AN6 and AN8 fittings
Vehicle Fitment
K-swapped 92-00 Civic (EK with EG subframe), K-swapped 94-01 Integra, other K-Series chassis (may require modification to fit)
Installation Notes
- The stock water pump requires modification
- AC/PS Eliminator Pulley Kit must be used
- K24 applications require K24 Intake Manifold Adapter
