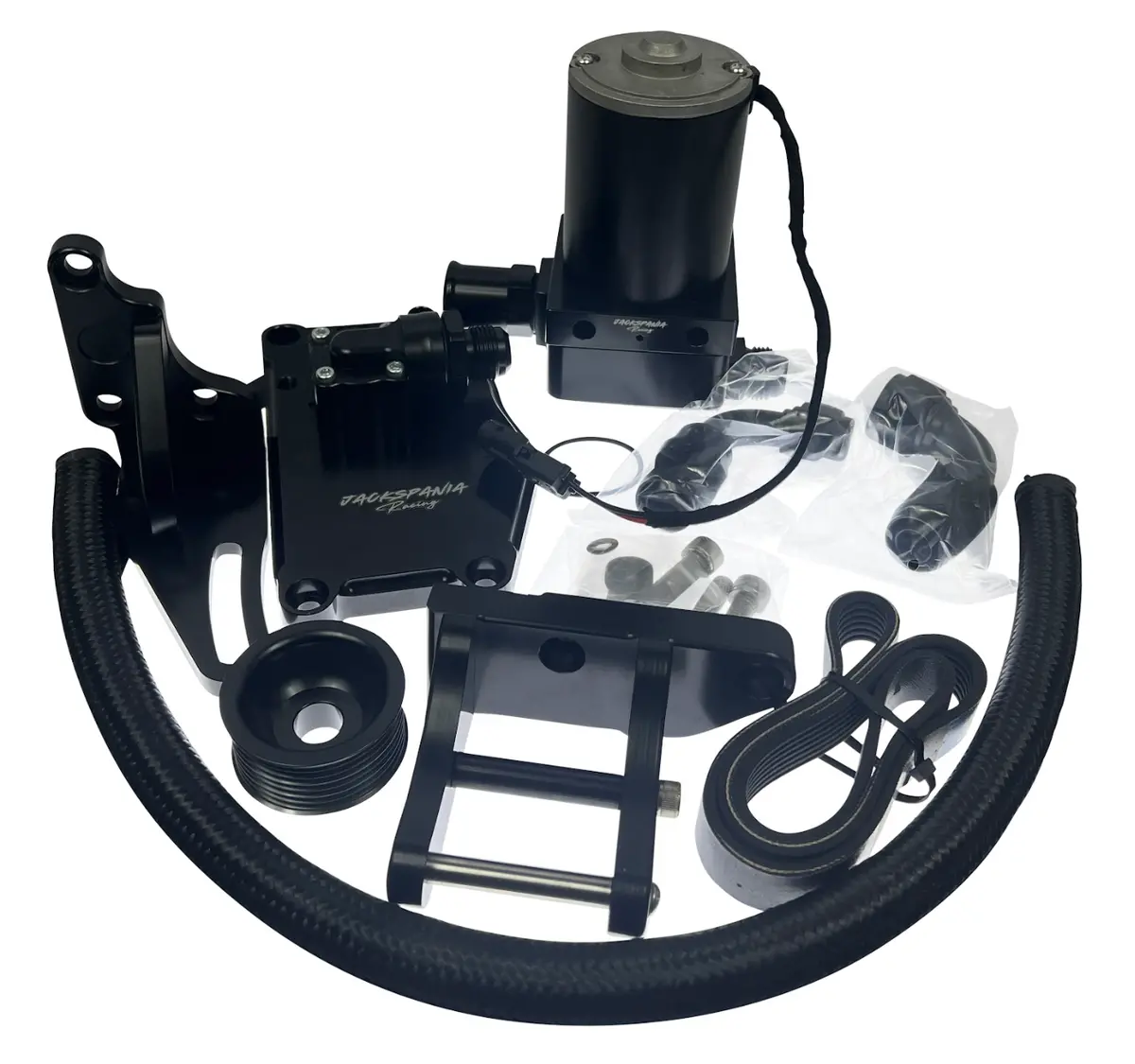

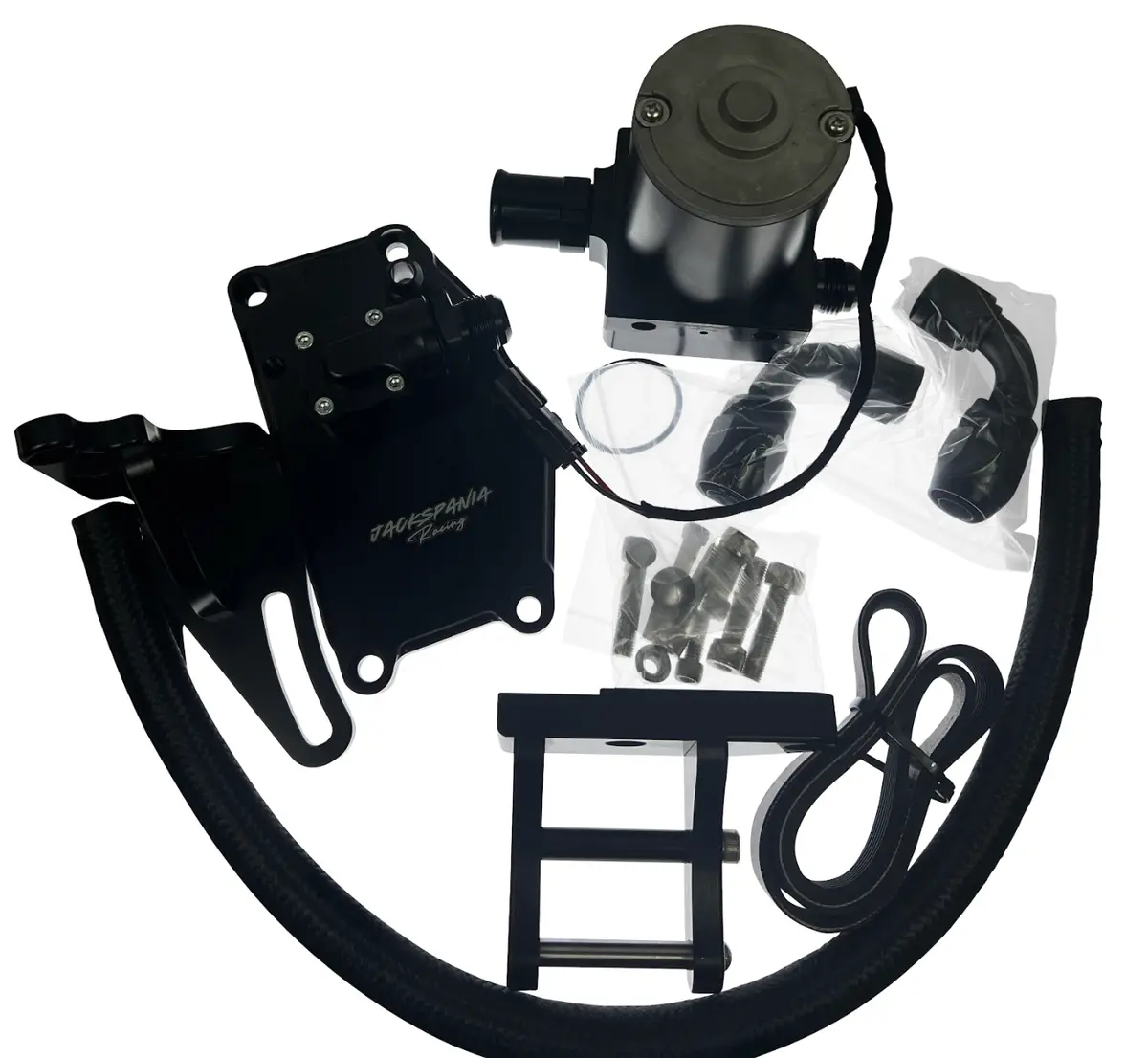

Billet Aluminum Electric Water Pump Mounting Plate Kit for K20/K24 Engines

Billet K20 K24 K Series Electric Water Pump Plate Kit Alternator Bracket Fitting

Description
The water plate/pump kit is designed for race use only. It is not recommended on street cars or stock/mild builds. Since the water plate/pump is at full flow at all times it can over-cool cars that are not under WOT most of the time. It does not have a thermostat nor regulated flow. Cannot be used with AC, Power Steering, Supercharger, or any other belt driven accessories other than the alternator.

• Made of billet aluminum
• Water pump provides 20 gallons per minute flow rate (uses 12 ORB fitting on both the inlet/outlet of pump)
• Do not use a Full Length -12AN Fitting inside the pump as it will interfere with the pumps internals and could destroy your pump (Voids Warranty)
• Replaces the oversized OEM water passage with a lightweight & low profile block-off plate
• High strength, multi-piece design ensures alternator is fully secured.
• No alternator pulley swap required.
• Designed to fit all K Series engines except K24Z, K24Y, & K20C Series engines.
• Designed to save weight, reduce drag and tuck the OEM alternator closer to the block.
• Removes oem water pump, auto tensioner, P/S, A/C and EP3 pulley
• Designed to be used with the lighter D/B series alternators
• Large coolant port is tapped for -16AN thread
• Smaller Breather port is tapped for -8AN thread
• Reduces parasitic drag to in turn increase the overall performance of your race engine.
• This part is intended for use on true high performance race car builds only!
• 1 Year Warranty on all components
