Description

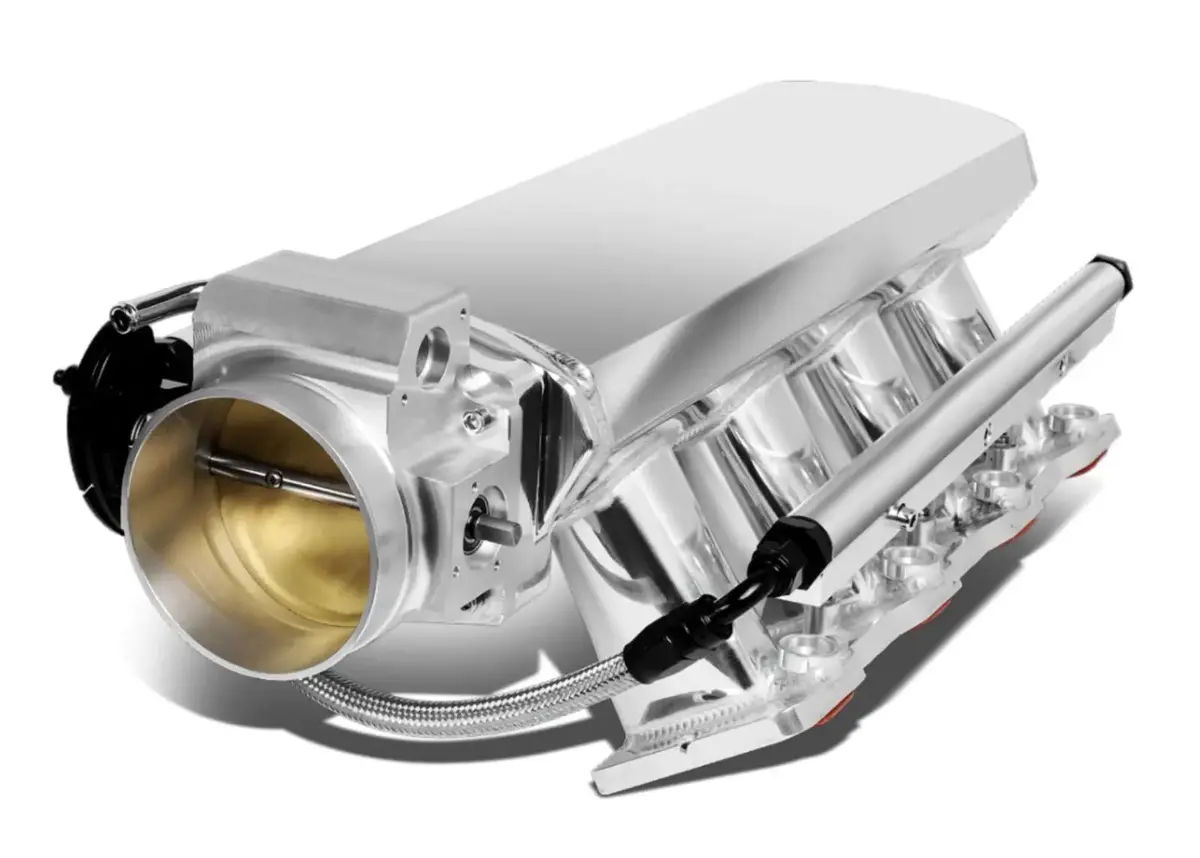

92mm Sheet Metal Fabricated Intake Manifold with Throttle Body for LS1 LS2 LS6 LSX

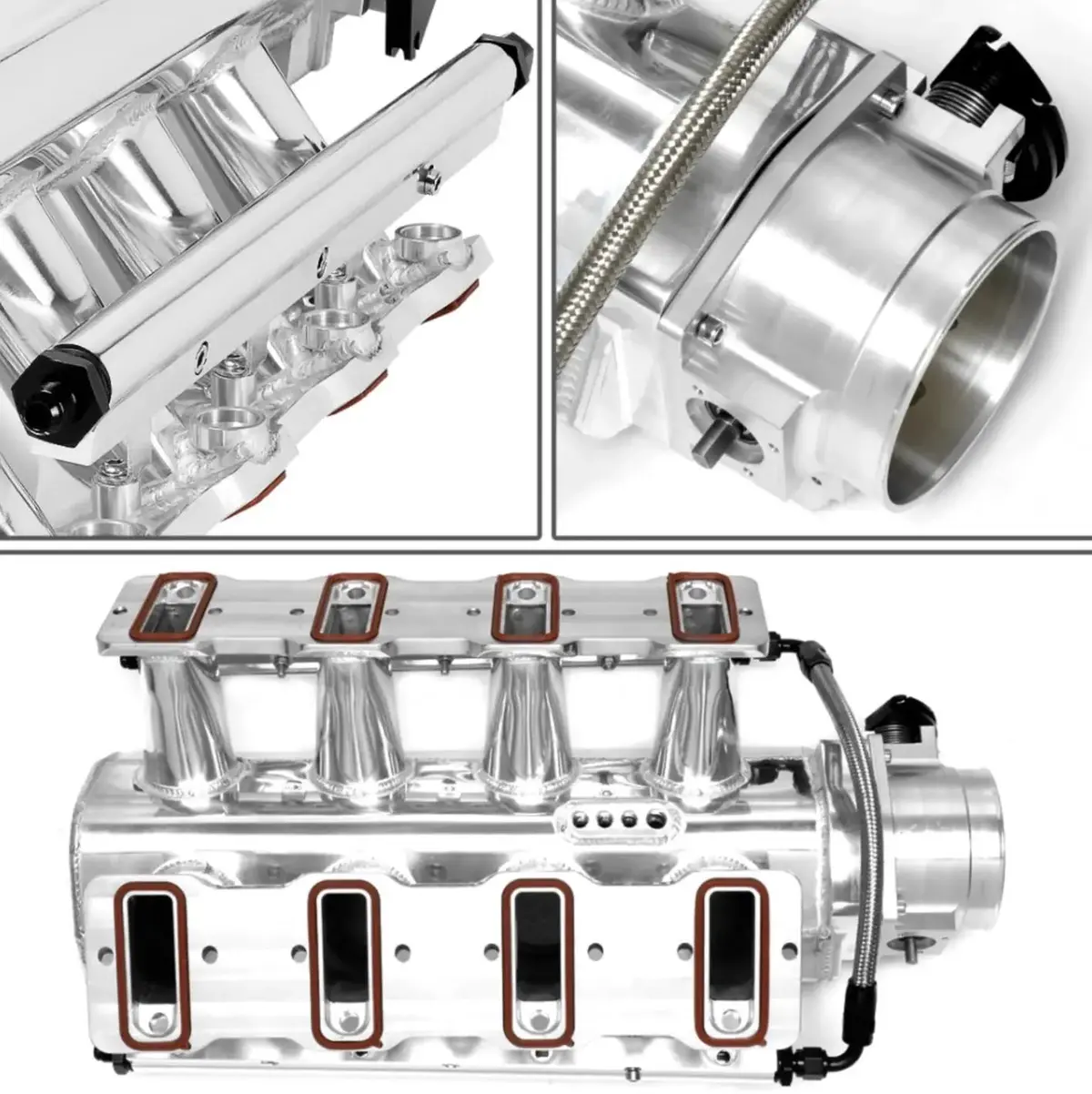

This intake manifold assembly features a 92mm billet aluminum throttle body and is constructed from 3mm thick T6061 aluminum sheet. The unit is designed with precision CNC-machined head flanges and is TIG welded for consistent quality. The polished finish and multiple vacuum ports provide a refined appearance and versatile functionality.
Key Features
- 92mm billet aluminum throttle body included
- Constructed from 3mm thick T6061 aluminum sheet
- Manifold height: 9 inches (approximately 5 inches higher than stock)
- Intake overall length: 20 inches
- Throttle body opening: 102mm
- Three vacuum ports
- Polished finish
- Precision CNC-machined head flanges
- TIG welded by professional craftsmen
- Designed to handle up to 30 lbs of boost
What’s Included
- Sheet metal fabricated intake manifold
- Billet aluminum 92mm throttle body

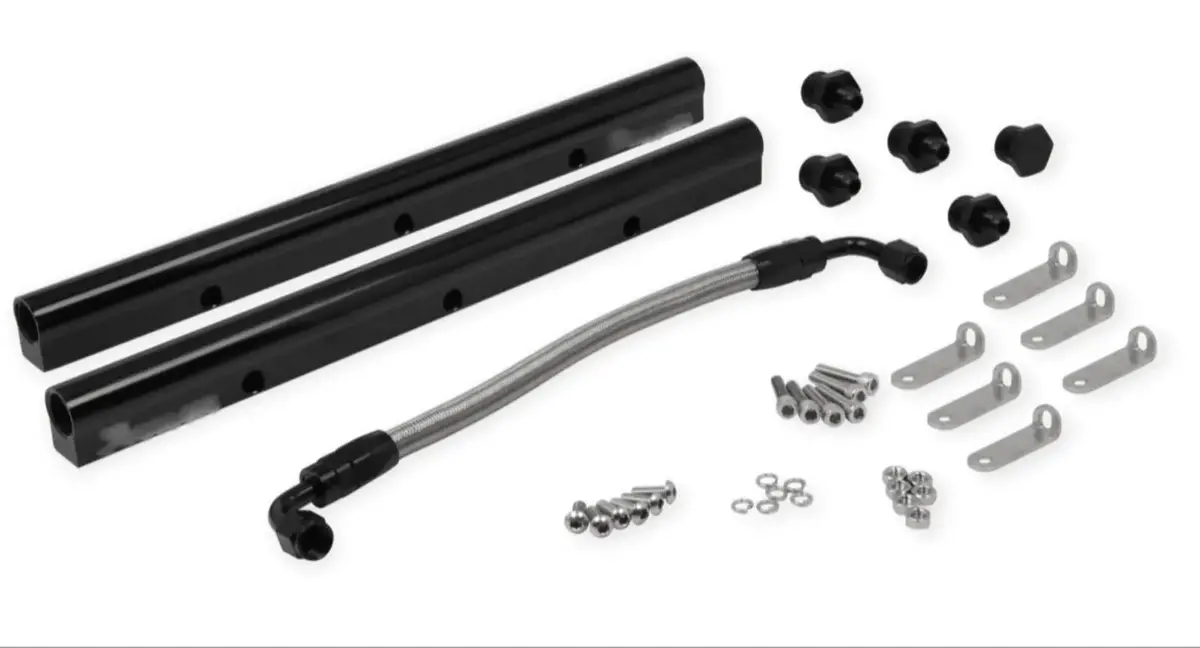

- 2x fuel rails
- Fuel crossover line
- Gaskets
- Fitting hardware
Vehicle Fitment
Fits LS1, LS2, LS6, 4.8L, 5.3L, and 6.0L engine heads with cathedral port configuration. Compatible with Chevrolet Small Block V8 GEN. III/IV (LS-Based) engines including 4.8L/293 CI (LR4), 5.3L/325 CI (L33, L59, LM4, LM7), 5.7L/346 CI (LS1, LS6), and 6.0L/364 CI (LQ4, LQ9, LS2). Original applications include 1997-2004 Chevrolet Corvette, 1998-2002 Pontiac Firebird Formula and Trans AM, 2001-2004 Corvette Z06, 2004-2005 Cadillac CTS V-series, 2005-2007 Chevrolet Corvette, 2005-2006 Chevrolet SSR, 2006-2009 Chevrolet TrailBlazer SS, 2006-2007 Cadillac CTS V-Series, 2005-2006 Pontiac GTO, and 2008-2009 Saab 9-7X Aero.
Installation Notes
- Aftermarket intakes may require rerouting of vacuum lines and minor adjustments on certain applications.
