Description

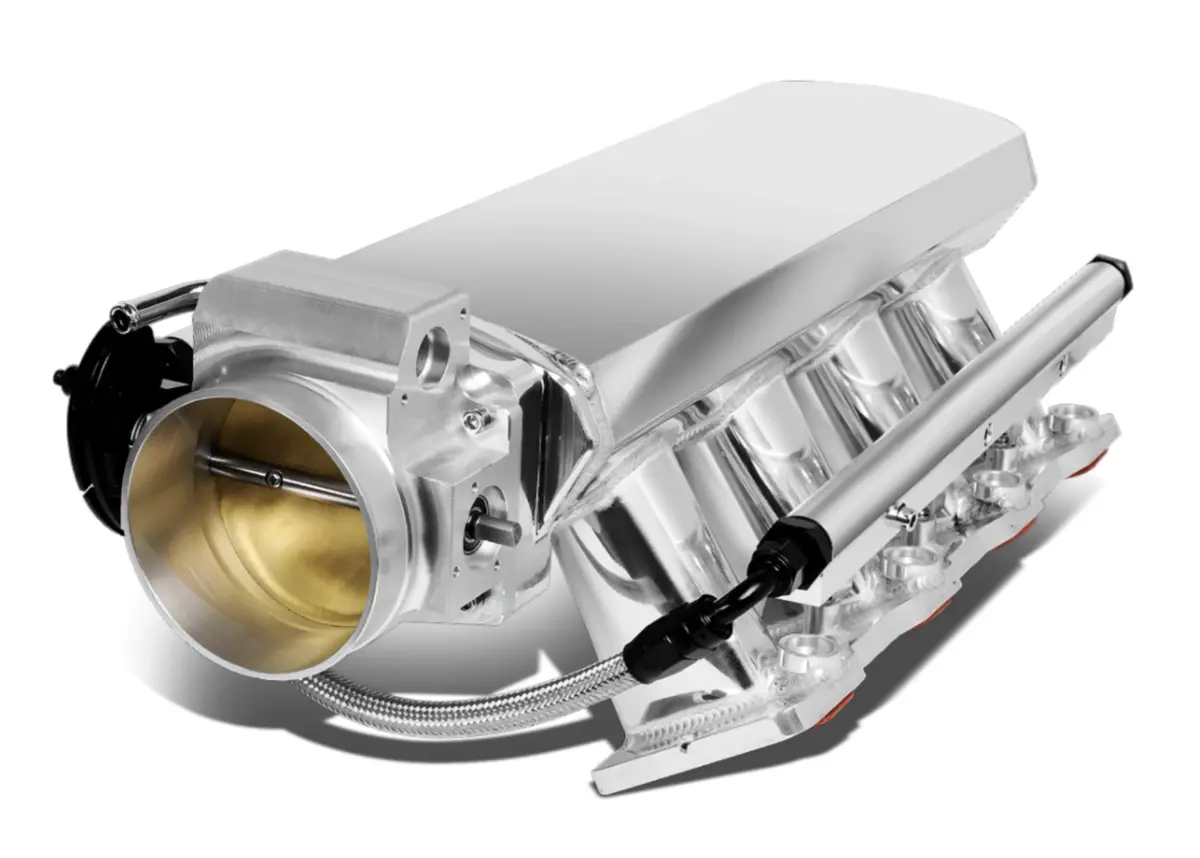

92mm Sheet Metal Fabricated Intake Manifold with Throttle Body for LS1, LS2, LS6, LSX
This intake manifold and throttle body assembly is constructed from 3mm thick T6061 aluminum sheet and features a polished finish. Designed for LS-based engines with cathedral port heads, it includes a 92mm billet aluminum throttle body and supports applications requiring a 102mm throttle body opening. The manifold is TIG welded and CNC machined for precise fitment and includes multiple vacuum ports and fuel system components.
Key Features
- Manifold height: 9 inches (approximately 5 inches higher than stock)
- Material: 3mm thick T6061 aluminum sheet
- Polished finish
- Throttle body opening: 102mm
- Includes billet aluminum 92mm throttle body
- Intake overall length: 20 inches
- Three vacuum ports
- Precision CNC machined head flanges
- TIG welded construction
- Designed to handle up to 30 lbs of boost
What’s Included
- Intake manifold
- Billet aluminum 92mm throttle body
- 2x fuel rails
- Fuel crossover line
- Gaskets
- Fitting hardware
Vehicle Fitment
Fits LS-based engines with cathedral port heads, including LS1, LS2, LS6, 4.8L, 5.3L, and 6.0L engine heads. Compatible with Chevrolet Small Block V8 GEN. III/IV (LS-Based) engines: 4.8L / 293 CI (LR4), 5.3L / 325 CI (L33, L59, LM4, LM7), 5.7L / 346 CI (LS1, LS6), 6.0L / 364 CI (LQ4, LQ9, LS2). Original LS1/LS2/LS6 engine applications include: 1997-2004 Chevrolet Corvette, 1998-2002 Pontiac Firebird Formula and Trans AM, 2001-2004 Corvette Z06, 2004-2005 Cadillac CTS V-series, 2005-2007 Chevrolet Corvette, 2005-2006 Chevrolet SSR, 2006-2009 Chevrolet TrailBlazer SS, 2006-2007 Cadillac CTS V-Series, 2005-2006 Pontiac GTO, and 2008-2009 Saab 9-7X Aero.
Installation Notes
- Aftermarket intakes may require rerouting of vacuum lines and minor adjustments on certain applications.
