Description
For VW/AUDI 1.8 20V engines
Nominal bore diameter: 81mm (increase engine displacement to 1780cc)
Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)
Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm
Compression height: 32.70mm.
Dish volume: 7cc
Compression ratio: 8.5:1
Pin offset: 1.10mm.
Material: Forged aluminum 4032 T6.
Average piston weight (unit, without pin): 318,66g (11.2 oz).
Rated for 1000hp.
Innovative high performance piston skirt design that provides:
1. Smaller piston to bore clearance‚
2. Less noise
3. Better ring seal
4. Higher power
5. Durability
Features:
Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.
Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.
Pin oil lubrication by broaches and oiler to reduce friction and increase durability.
Super A Piston Pin (63.45mm) ¢â‚¬ 4pcs set
For VW 827 engines (Super A pistons)
Dimensions: 63.45mm x 20mm (length x O.D.)
Average unit weight: 116g (4.09 oz)
Rated for 1.000hp
Made from special steel alloys that combines optimal mass with high resistance.
‚

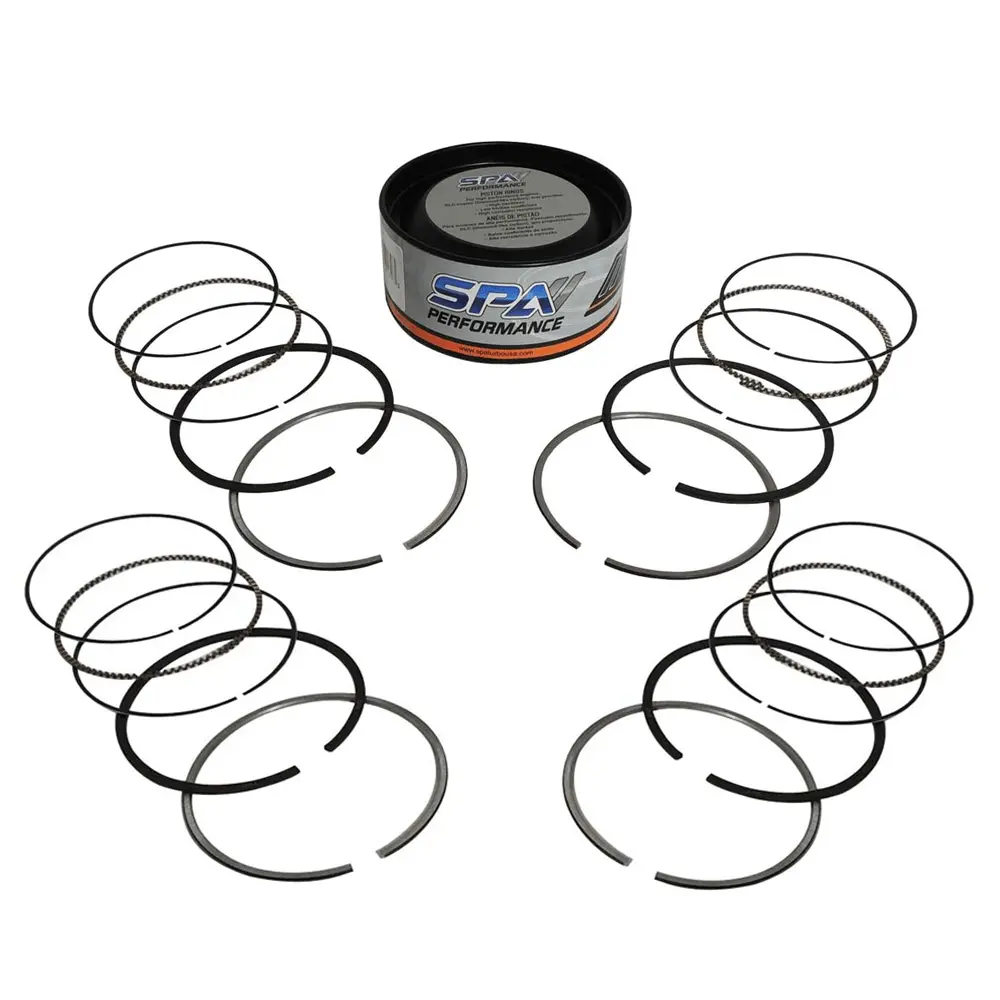

Piston‚ Rings 81mm SPA DLC series
Specifications:
1‚º ring 1.5mm ¢â‚¬ Made from carbon steel, which is 35% stronger than cast iron and about 30% lighter. DLC treated, which is the application of carbon particles, that provides higher resistance and lower friction.
2‚° ring 1.5mm ¢â‚¬ Made from cast iron.
3‚º ring 2.0mm ¢â‚¬ Made by 3 parts, providing easy handling, better oil film stability and improvement in oil removal by the lubrication holes due to its optimized design.
‚
‚
252 / 260 High Performance Camshaft set
These SPA Turbo Cams for your VW are one of the best overall performance upgrades you can do.
Not a peaky or hard to live with pair, this matched camshaft set increases performance throughout the available rev range and is a popular application for the street performance or dual street track uses cars.
Intake 252‚°/Exhaust 260‚°
Includes Adjustable cam sprocket/s
This is a popular combination, designed to run with OEM lifters followers and springs
Fits VW 1.8T 20V applications
More torque and Horsepower!
Intake 252‚°, cam lift 8,2, valve lift at TDC 0,8 – for TURBO, for hydr. lifters
Exhaust 260‚°, cam lift 10,4, valve lift at TDC 0,7, for hydr. lifters
Attention: we strongly recommend the assembly with NEW hydraulic lifters, otherwise camshafts can be damaged.
( Mfg / Vehicle (model) / Year / Engine )
Audi A4 CVT 2001.5-up 1.8T
Audi A4 FWD 2001-up 1.8T
Audi A4 Quattro 1997-1999.5 1.8T
Audi A4 Quattro 2000 1.8T
Audi A4 Quattro 2001-up 1.8T
Audi TT 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 225HP
Golf/GTI IV 2001-up 1.8T
Golf/GTI IV 2000 1.8T
Jetta IV 2000 1.8T
Jetta IV 2001-up 1.8T
New Beetle 2000 1.8T
New Beetle 2001-up 1.8T
Passat B5 1998-2000 1.8T
Passat B5 2001-up 1.8T
Passat B5.5 2001.5-up 1.8T
Tech Tips:
Professional installation is a must with this cam set
Timing chain tensioner needs to be modified to allow free travel of the included Adjustable cam sprocket.
Install it with a new set of lifters
Made of 1045 quenched steel
Billet machined
52-58 HRC
‚
All SPA Performance¢â‚¬s camshafts includes CMD anti scoring lube #3
Designed for extreme pressure applications, it¢â‚¬s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams – followers interface.
