38mm External Wastegate Spring Set – 8 PSI & 14 PSI Options for Tial Valves

Description

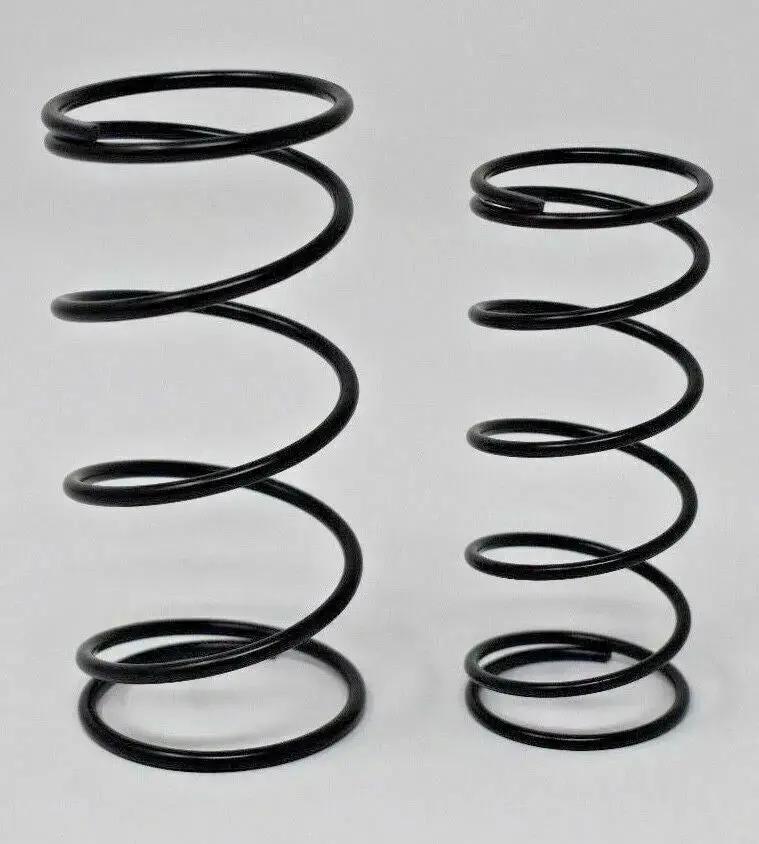

38mm External Wastegate Spring Set 8 PSI and 14 PSI Replacement for TiAL 1 Bar

This 38mm external wastegate spring set is designed as a replacement for TiAL 1 Bar applications. The set includes one 14 PSI spring and one 8 PSI spring, both constructed from high quality mild steel with a coated finish. Each spring is engineered for use in turbo external wastegate assemblies, providing options for regulated boost pressure.

Key Features

• Spring outer diameter (14 PSI): approximately 47.2mm
• Spring length (14 PSI): approximately 98.7mm
• Spring outer diameter (8 PSI): approximately 37.5mm
• Spring length (8 PSI): approximately 90.6mm
• Material: high quality mild steel
• Coated finish
• Designed for 38mm external wastegate applications
• Intended for use with TiAL 1 Bar wastegates

What’s Included

• 1 x 14 PSI spring
• 1 x 8 PSI spring

Vehicle Fitment

Not specified by manufacturer

Installation Notes

• Remove the locking collar, extract the old spring, and install the new spring as required
• Springs may be used individually or stacked in groups inside the wastegate to achieve desired boost pressure
